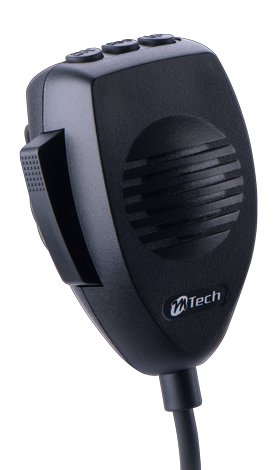

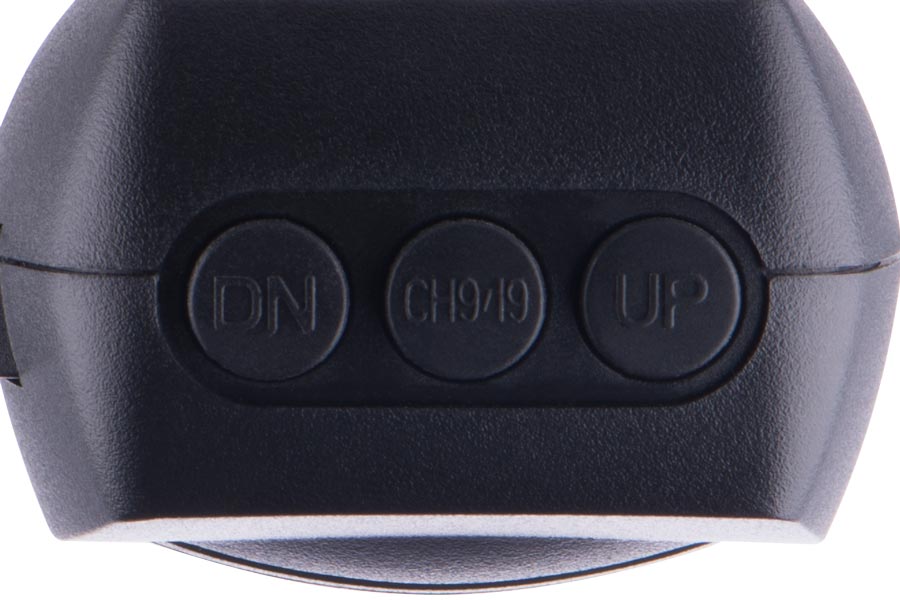

3-Button
Hand Mic Design
Dual Channel Watch (D.W.)

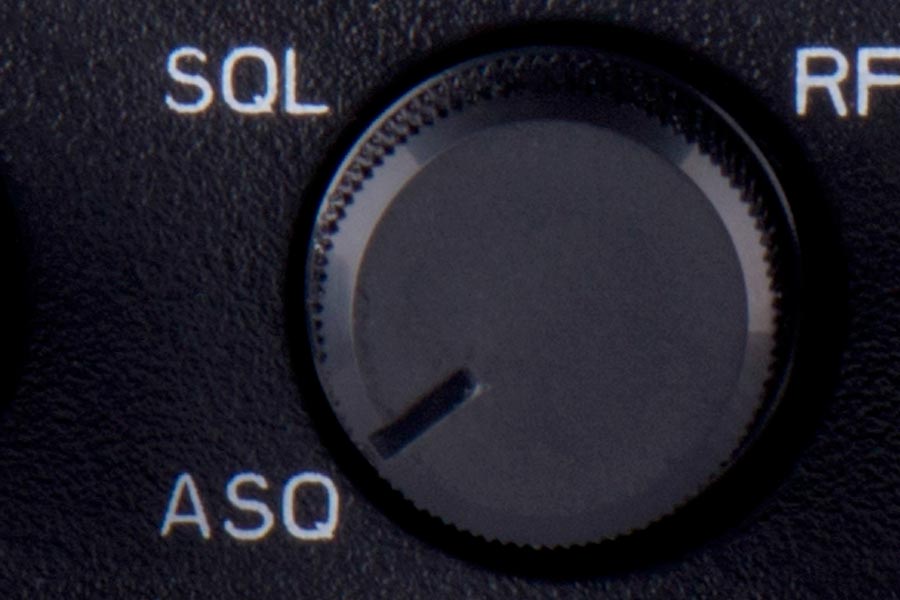

Automatic Squelch Control
(ASQ)/SQL

Specifications
General |
|
---|---|
Channels | 40 |
Modulation | AM/FM |
Frequency Range | 26.965 - 27.405 MHz |
Frequency Tolerance | ±200Hz |
Input Voltage | 13.2V DC |
Dimensions | 125(L) x 38(H) x 126.5(D) mm |
Weight | Approx. 0.6kg |
Antenna Impedance | 50ohm |
Transmitter |
|
---|---|
Maximum Output Power | 4W |
Transmission Interference | <4nW |
Audio Response | 300Hz to 3KHz |
Emitted Power in the Adj. Channel | <20μW |
Microphone Sensitivity | 7mW |
Drain | <1.8A (with modulation) |
Modulated Signal Distortion | 3% |
Receiver |
|
---|---|
Max. Sensitivity at 20dB Sinad | <1μV |
Frequency Image Rejection Rate | >60dB |
Adjacent Channel Selectivity | >60dB |
Intermediate Frequency Rej. Rate | >60dB |
Drain | <700mA |
Squelch Sensitivity | Min. <0.5μV; Max. =1mV |
Frequency Response | 300Hz to 3KHz |
Maximum Audio Power | >2W |
