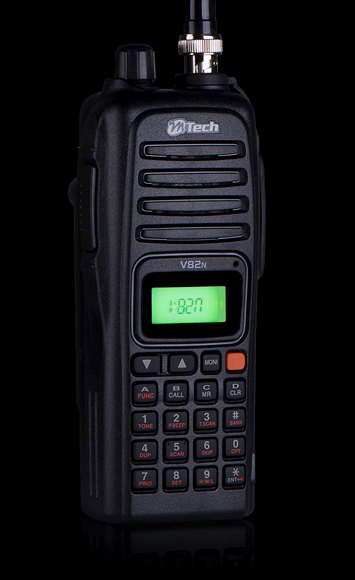

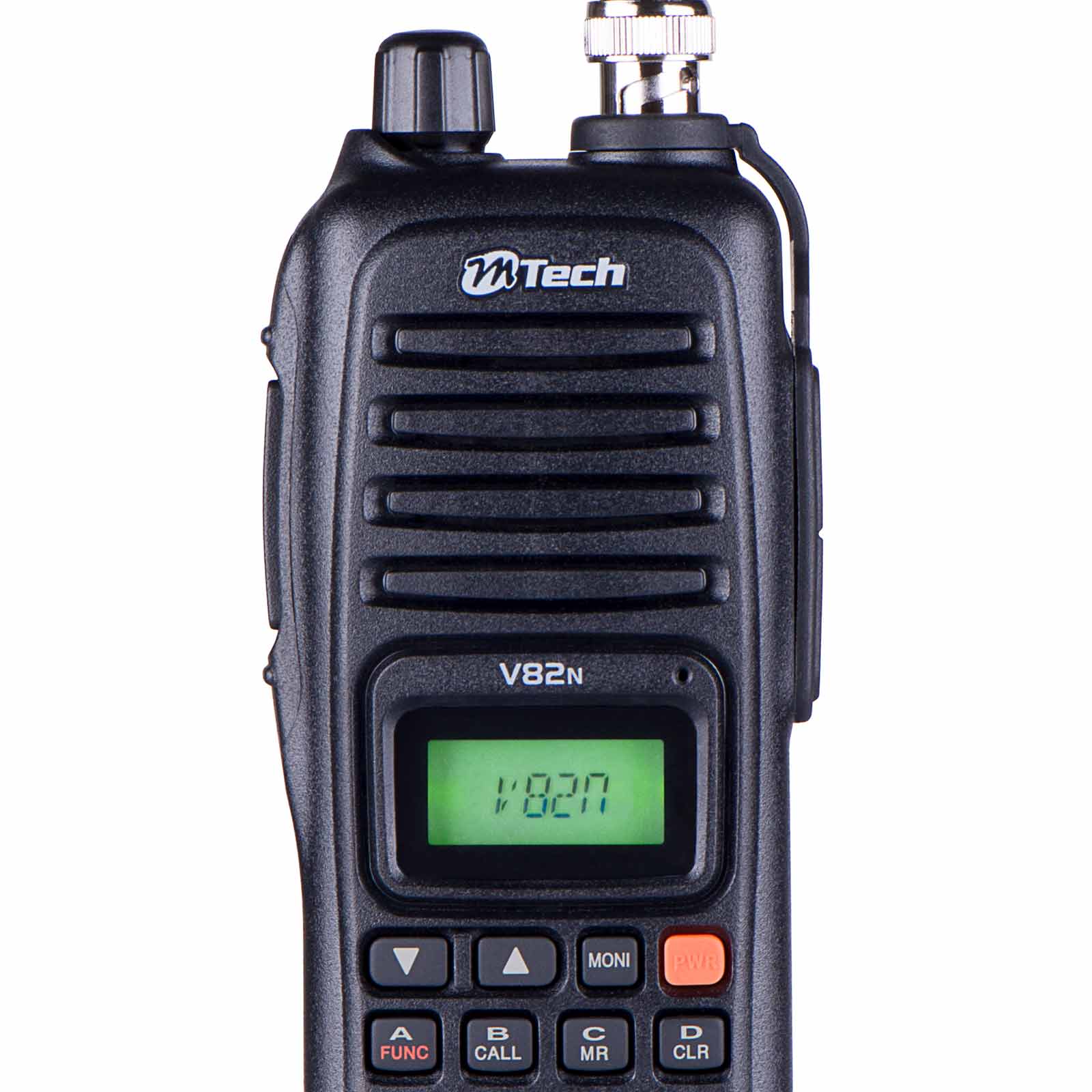

Explore the MT‑V82N

  • Powerful 7W of Output Power
  • Robust Design
  • VHF Frequency Range
  • BP-3100LI Li-ion Battery Supplied
  • Reliable Construction and Simple Operation
  • 207 Memory Channels
  • 5 Character Alphanumeric Display
  • 207 Memory Channels
  • Priority, Program, Memory, Skip and Tone Scanning
  • Built-in CTCSS and DTCS Encoder/Decoder
  • 6 DTMF Autodial Memories
  • Compatible with V-82 Radio Systems and Relays

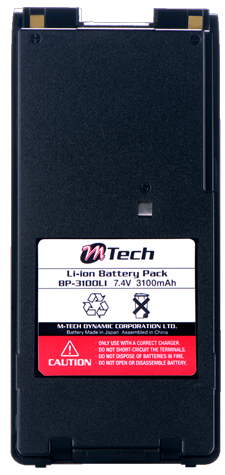

M-Tech BP-3100LI

High Capacity BP‑3100LI Battery Pack Supplied

  • High Capacity Battery Pack for M-Tech MT-V82N Portable Transceivers
  • Compatible with ICOM IC-V82/ IC-U82 Portable Transceivers
  • Fully charged in less than 5 hours with M-Tech BC-82S charger
  • Triple battery protection- 3 layers of charging protection to ensure the reliability of the battery life cycle
  • Compatible with all original ICOM Li-ion and Ni-Cd chargers- auto detect charger type (Li-ion and Ni-Cd); reusable – compatible with ICOM chargers for IC-V82/ IC-U82; environmental friendly
  • Made with quality battery cells (Panasonic 18650) and high end compatible electric components
  • Robust internal casing for safe operation in tough conditions

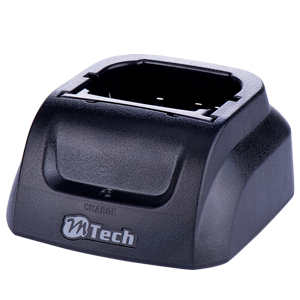

BC-82S Desktop Rapid Charger Supplied

  • With BC-82S, BP-3100LI battery pack is fully charged in less than 5 Hours.
  • Support either battery pack alone or full set device charging.
  • Compatible with all original ICOM Li-ion and Ni-Cd batteries
  • Compatible with ICOM IC-V82/ IC-U82 Portable Transceivers

M-Tech BC-82S

Specifications

General

Frequency Range 136-174MHz (Guaranteed range: 144-148MHz)
Modulation FM
Memory Channels 207 (Incl. 6 scan edges and 1 call)
Frequency Stability ±2.5ppm (-10°C to +60°C)
Input Voltage 7.2V DC (6.0 - 10.3V DC acceptable; M-Tech's battery pack only)
Current Drain (@7.2V DC) Tx - High (7W/5W): 2.6A/ Rx - Max. audio: 250mA; Standby: 80mA; Power save: 30mA
Antenna Impedance 50ohm (BNC)
Operating Temperature -10°C to +60°C; +14°F to +140°F
Dimensions 54(W) x 139(H) x 36.7(D)mm (Projections not included)
Weight Approx. 390g (With antenna and BP-3100LI)
Supplied Accessories Belt Clip, BP-3100LI Battery Pack, BC-82S Charger

Transmitter

Power Output (@7.2V DC) 7.0/4.0/0.5W (high/mid/low)
Max. Frequency Deviation ±5.0/±2.5kHz (wide/narrow)
Spurious Emissions Less than -60dBc
Ext. Microphone Connector 3-conductor ∅2.5mm/ 2.2ohm

Receiver

Intermediate Frequency 46.35MHz/450kHz (1st/2nd)
Sensitivity 0.6μV (typ.: at 12dB SINAD)
Squelch Sensitivity 0.11μV (typ.: threshold)
Selectivity More than 55/50dB (wide/narrow)
Intermodulation 65dB (typ.)
Spurious and Image Rejection 80dB
Audio Output Power 300mW with an 8ohm load
Ext. Speaker Connector 3-conductor ∅3.5mm/ 8ohm
Ext. Data Connector 3-conductor ∅2.5mm/ 2.2ohm
