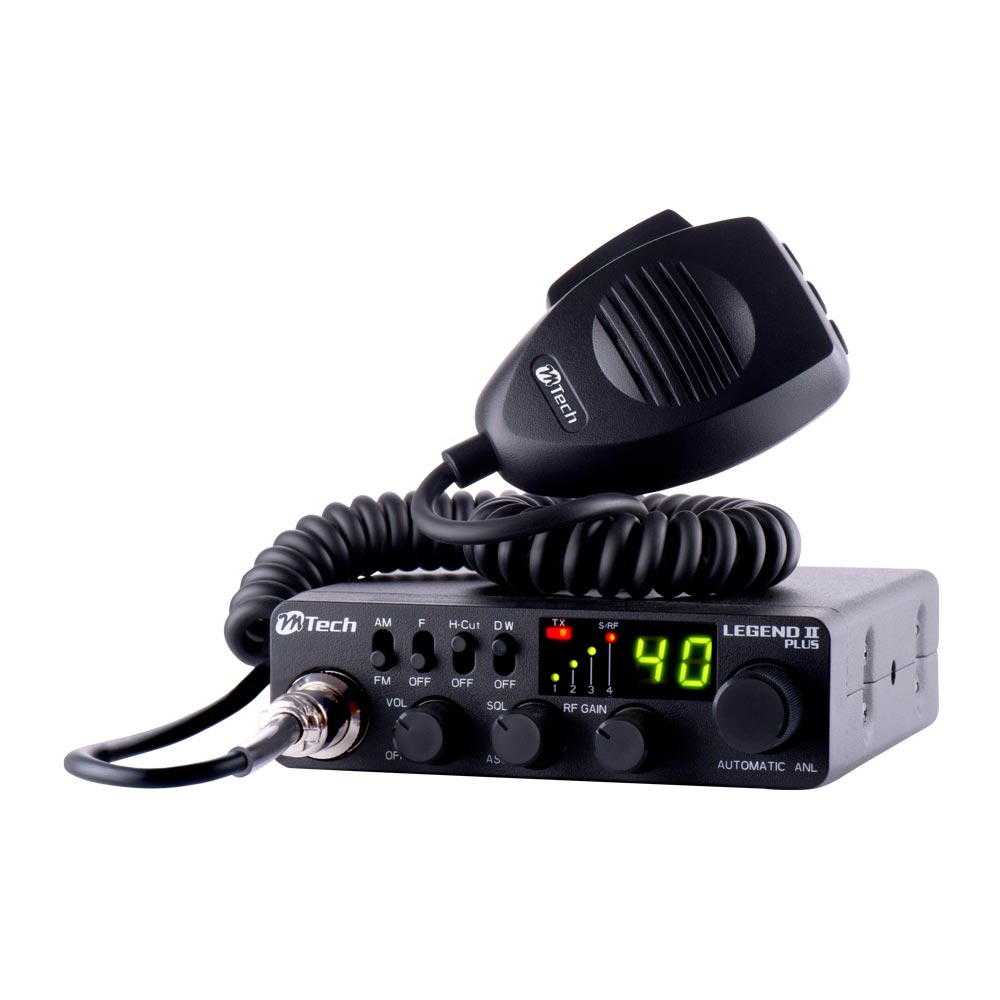

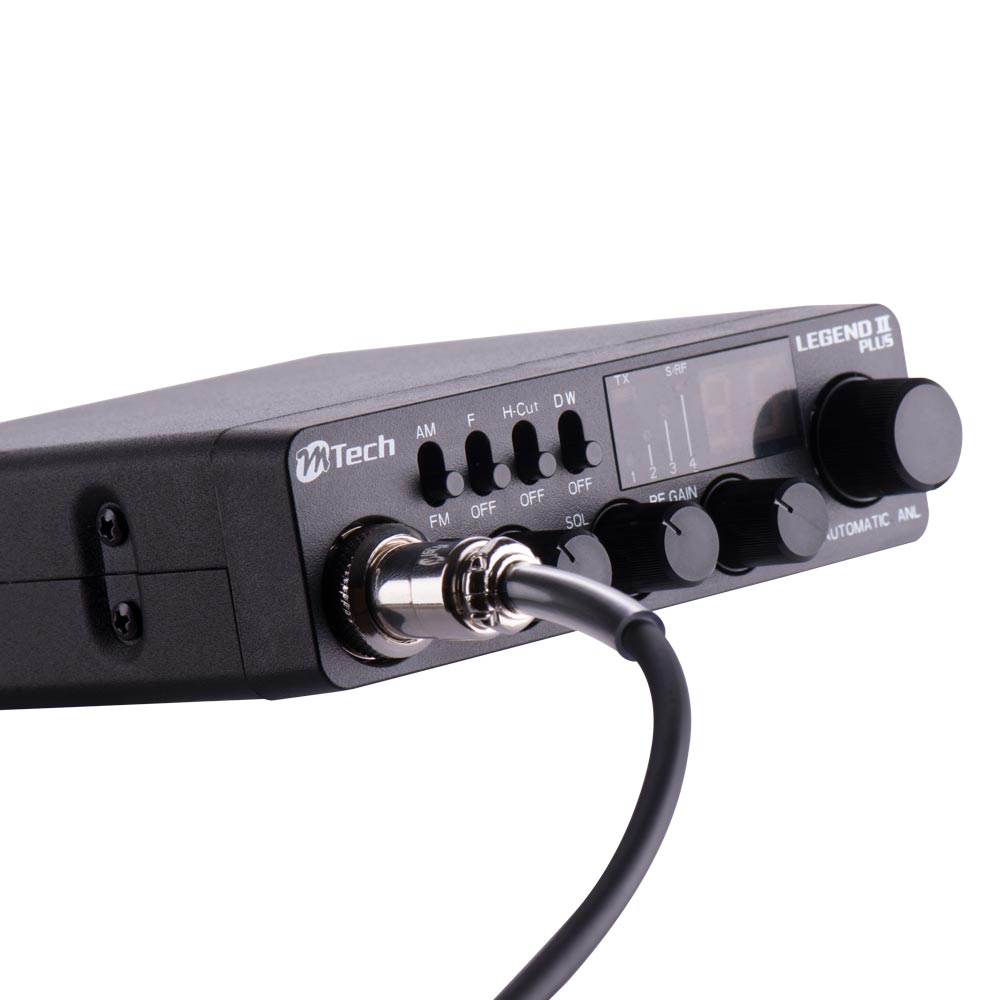

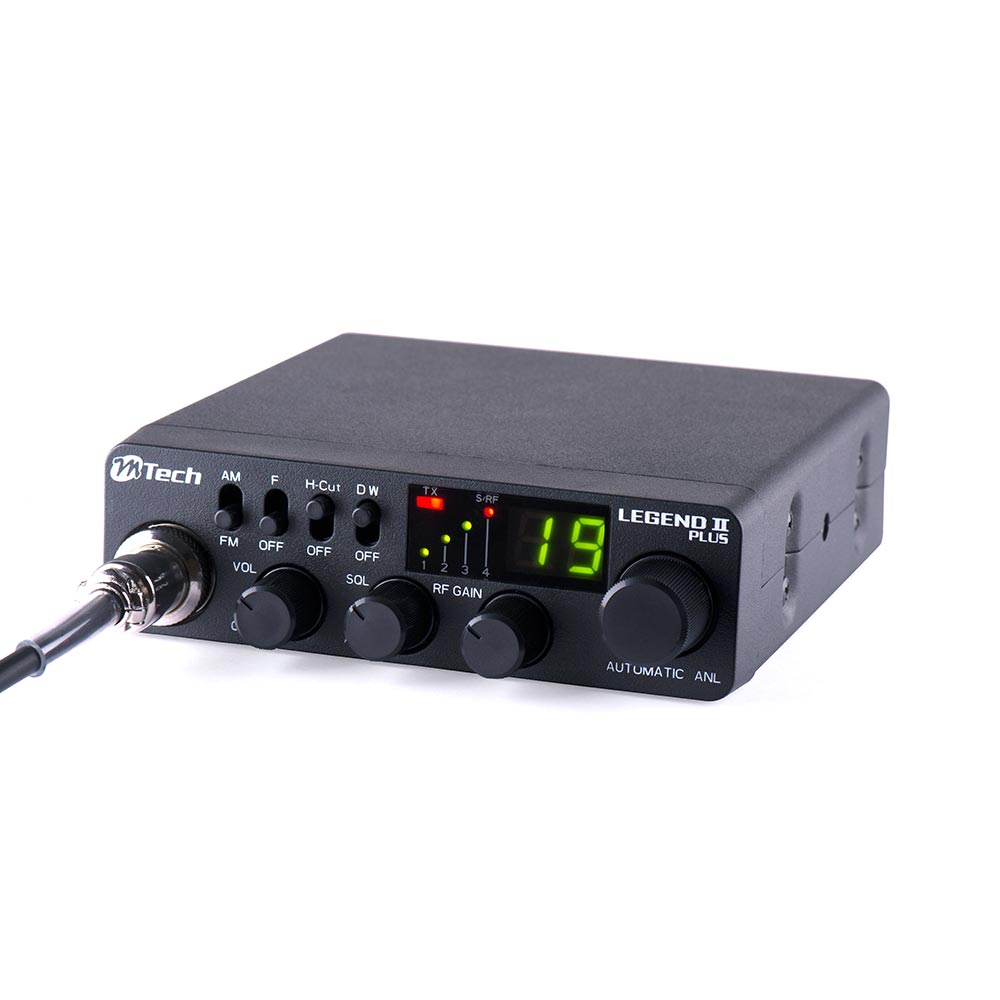

LEGEND II PLUS

CB Radio

SKU: LEGEND II PLUS Category:

Feature

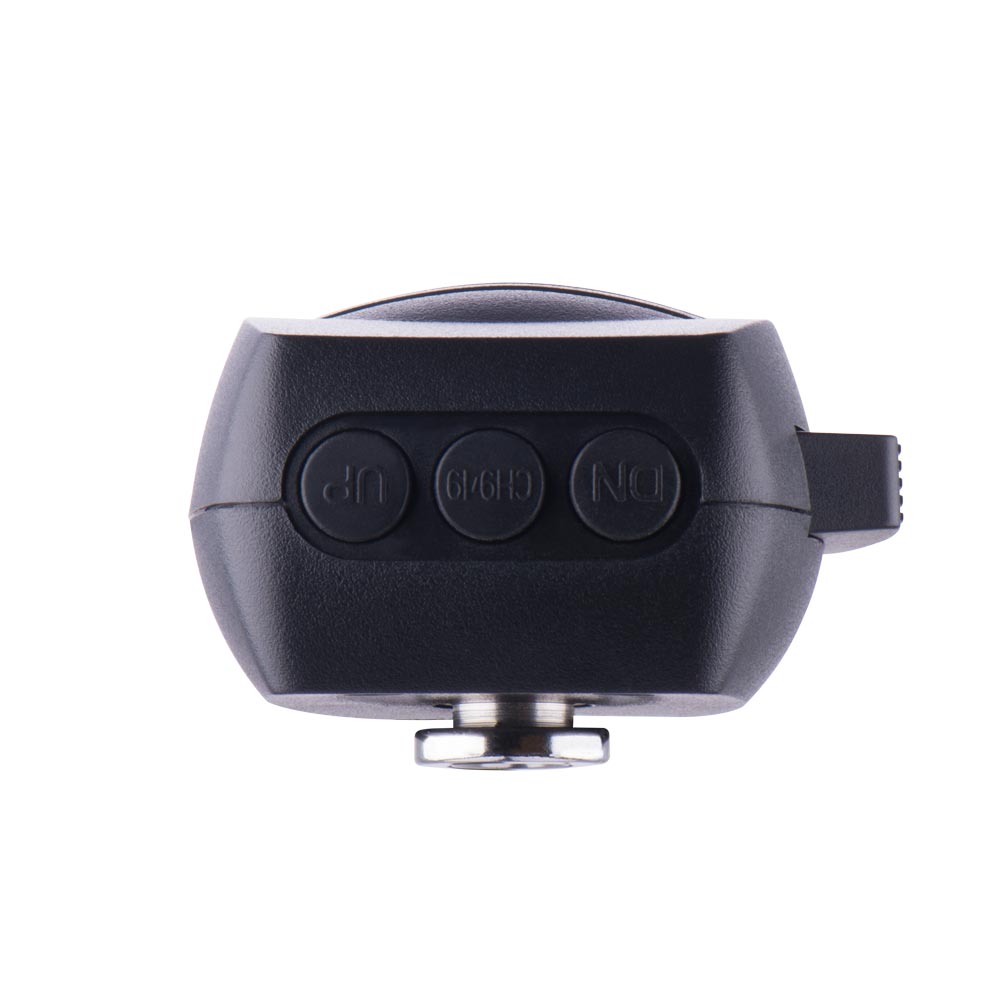

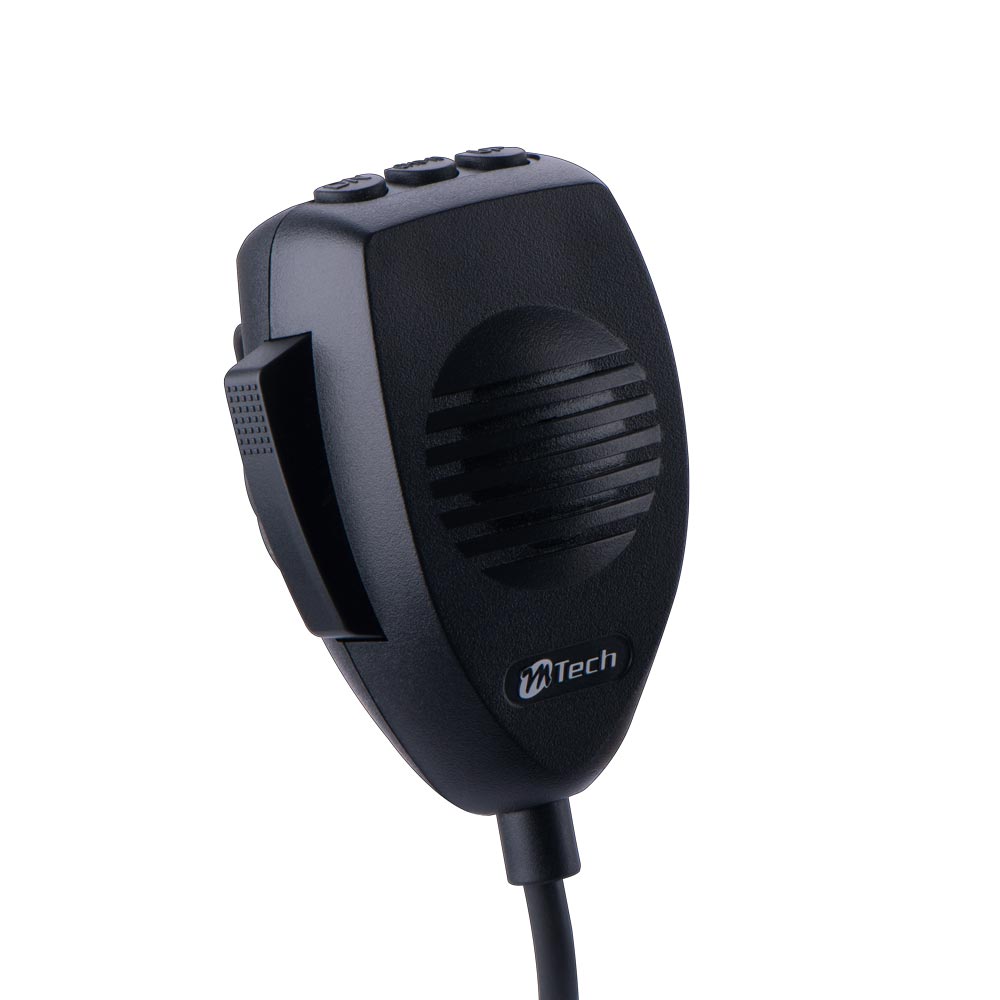

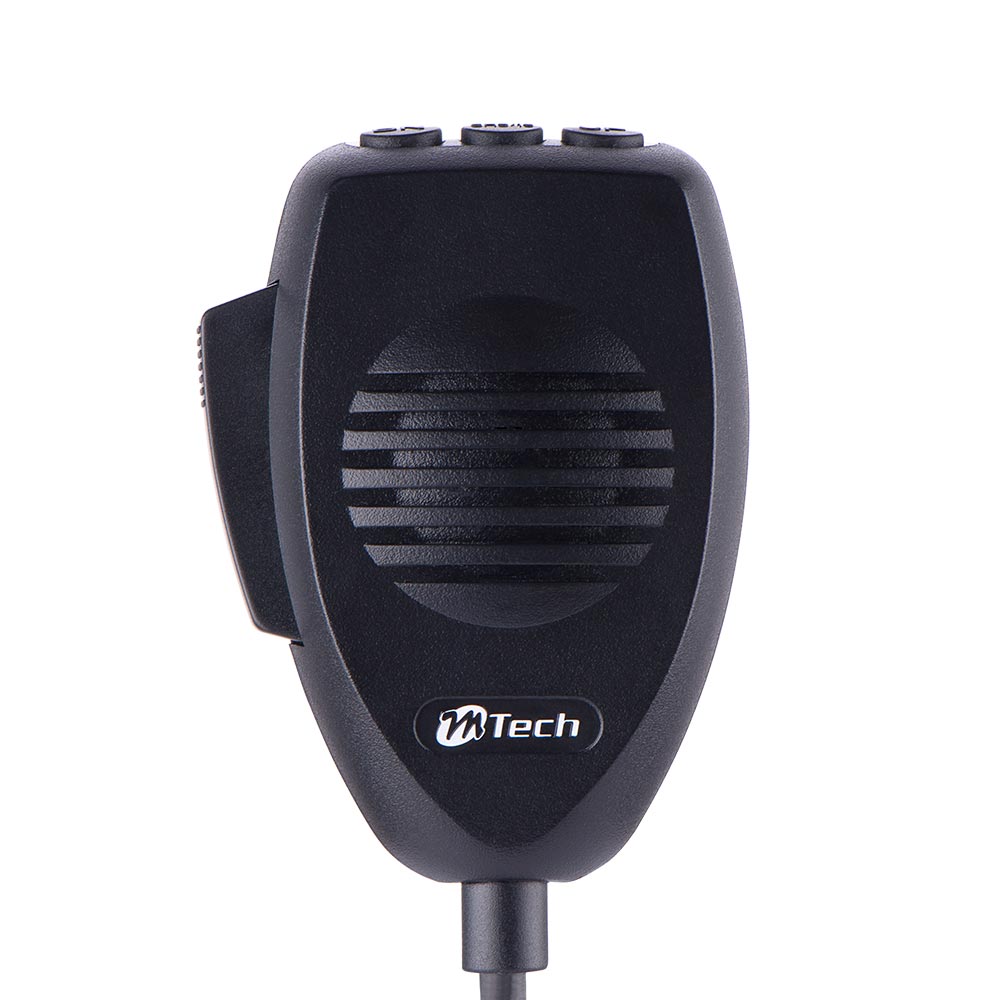

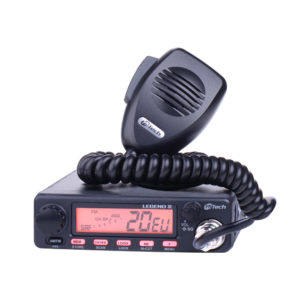

  • 3-button Hand Mic Design – Give you more control with one hand
  • D.W. (Dual Channel Watch) – Enable you to use 2 channels at the same time.
  • ASQ (Automatic Squelch Control/SQL) – Suppress undesirable background noises when not in communication.
  • Squelch does not affect neither sound nor transmission power, but allows a considerable improvement in listening comfort.

Specifications

Channels

40 AM/FM

Frequency Range

26.965-27.405MHz

Frequency Tolerance

±200Hz

Input Voltage

13.2V DC

Operating Temperature Range

-10°C to +55°C

Output Power

4W Max.

Transmission Interference

<4nW

Emitted PWR in the Adj CH

<20uW

Output Impedance

50ohm (Unbalanced)

Microphone Sensitivity

7mW

Modulated Signal Distortion

3%

Sensitivity

Max. <0.1uV for 20dB SINAD

Adjacent Channel Rejection

>60dB

Image Rejection

>60dB

Intermediate Freq Rej Rate

>60dB

Drain

<700mA

Squelch

Min. <0.5uV; Max. =1mV

Audio Output Power

>2W

Frequency Response

300Hz to 3KHz

Dimensions

125(L) x 38(H) x 126.5(D) mm

Weight

Approx. 600g
