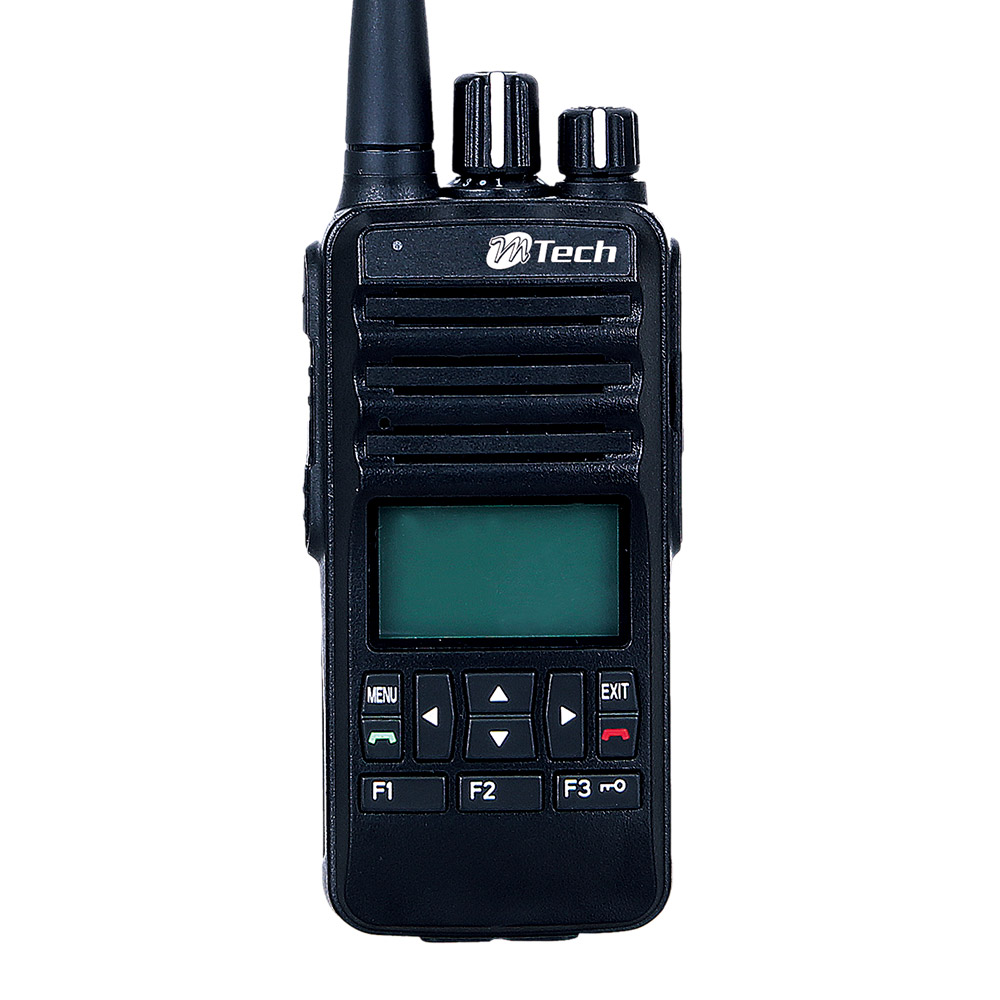

D-568C

Digital Portable Radio

SKU: D-568C Categories: ,

Feature

  • Digital and analog supported
  • Noise suppression and exceptional voice clarity
  • Kill and stun function available
  • Multiple calling modes
  • 1.8 inch High-definition color LCD screen
  • Convenient operation
  • Safe communication
  • Solid outer casing

Specifications

Channels

256

Frequency Range

136–174MHz/ 350 –400MHz/ 400–470MHz

Modulation

11K0F3E @12.5KHz 16K0F3E @25KHz

4FSK Digital Modulation

12.5KHz Data Only: 7K60FXD; 12.5 KHz Data & Voice: 7K60FXW

Modulation Limiting

±2.5KHz @12.5KHz; ±5KHz @25KHz

Channel Spacing

Analog: 6.25/ 12.5KHz; Digital: 12.5/ 25KHz

Frequency Stability

±2ppm

Input Voltage

7.4V (Rated)

Battery

1500/ 2000mAh (Li-ion)

Operating Temperature Range

-25°C to +55°C

Storage Temperature Range

-40°C to 85°C

Antenna Impedance

50ohm

Meter

1.8” High-definition color LCD screen

Water Resistance

IP54 Standard

Electro-Static Discharge

IEC 61000-4-2 (Level 4); ±8kV (Contact); ±15kV (Air)

Output Power

5W (High)/ 2W (Low)

Conducted/ Radiated Emission

-36dBm 1GHz

Adjacent Channel Power

-60dB @12.5KHz; -70dB @25KHz

Audio Response

+1 to -3dB

Audio Distortion

≤3%

Selectivity

Analog: -121dBm; Digital: 120dBm (BER ≤3 %)

Audio Output Power

1W (Rated)

Distortion

≤3% (Rated)

Conducted Spurious Emission

Less than -57dBm

Dimensions

60(W) x 120(H) x 35(D) mm (Projections not included)

Weight

Approx. 235g
