M-TECH LEGEND I
Built in ANL


Crisp, Clear & Strong Compandor Audio


A Fast Button for
Emergency Call
CH. 9/19
LEGEND I
Explore the LEGEND I
LEGEND I
Feature of M-TECH LEGEND I

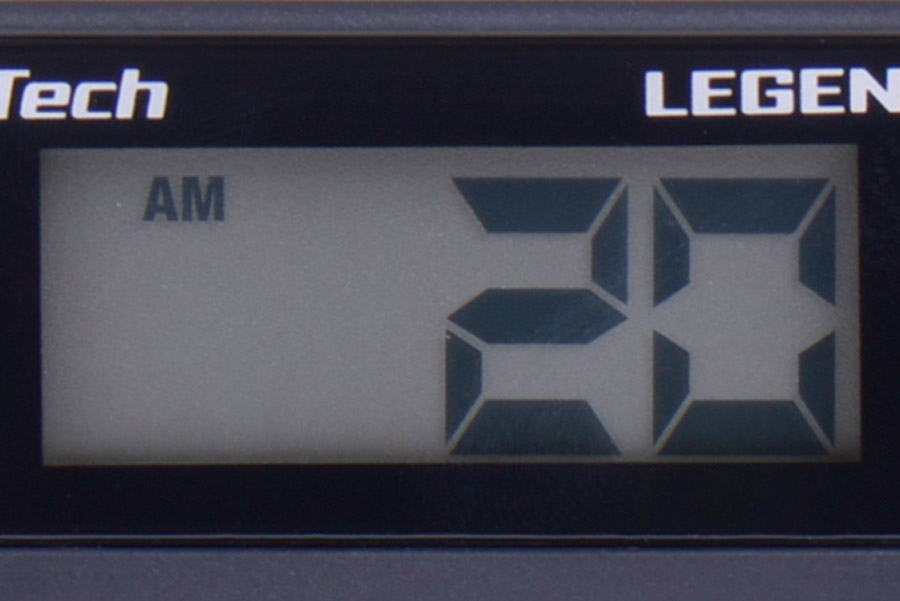

Multi Function LCD
(CH, Tx/Rx, Signal Strength, RF Power)

Feature of M-TECH LEGEND I

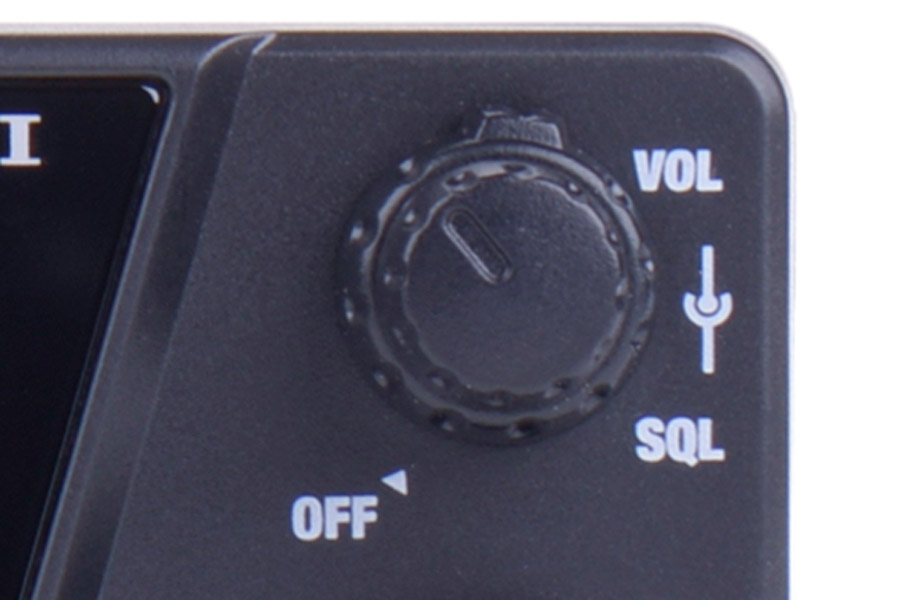

Volume Control with Power ON / OFF

Feature of M-TECH LEGEND I

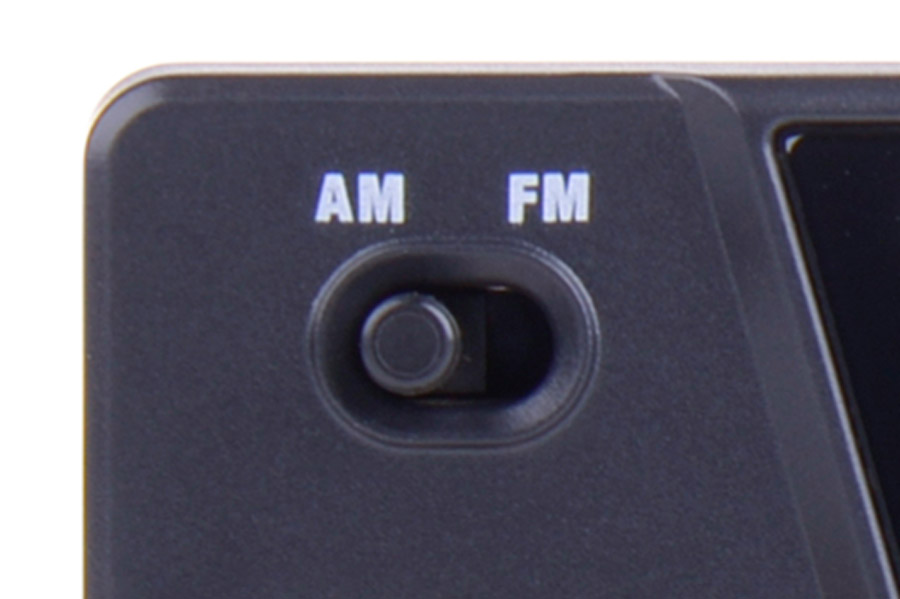

40 AM/FM Full European Channels

Feature of M-TECH LEGEND I

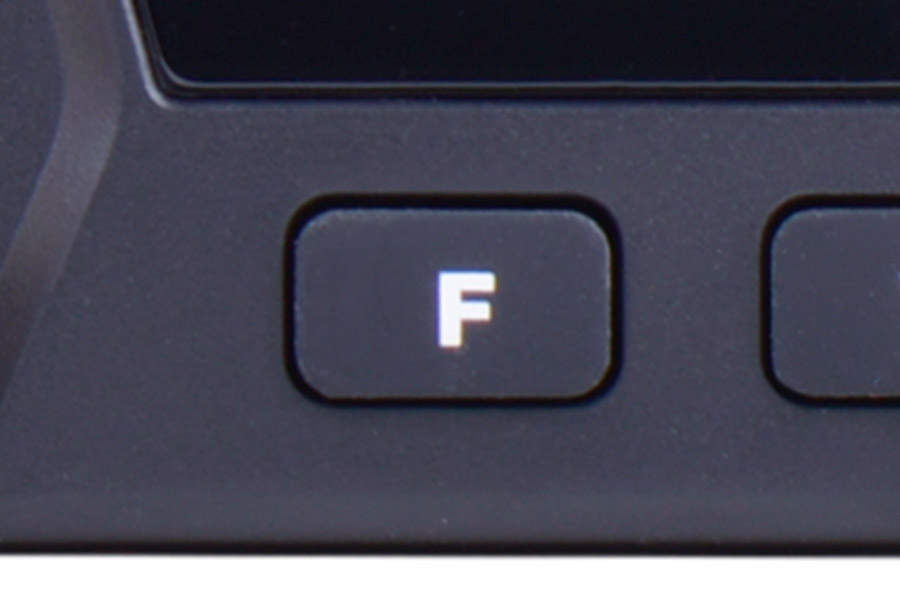

"F" Switch for Country Selection

Feature of M-TECH LEGEND I

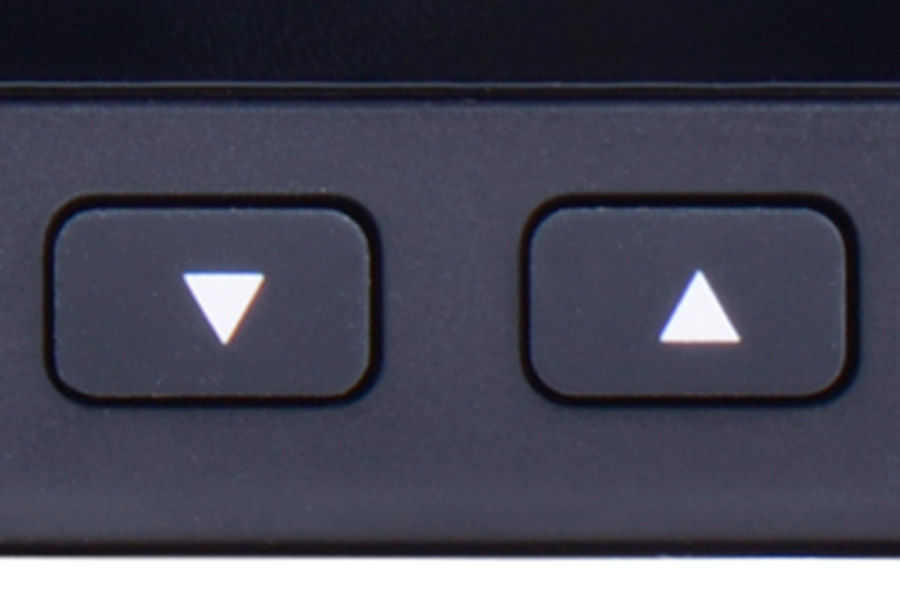

Up / Down Channel Selector

Feature of M-TECH LEGEND I

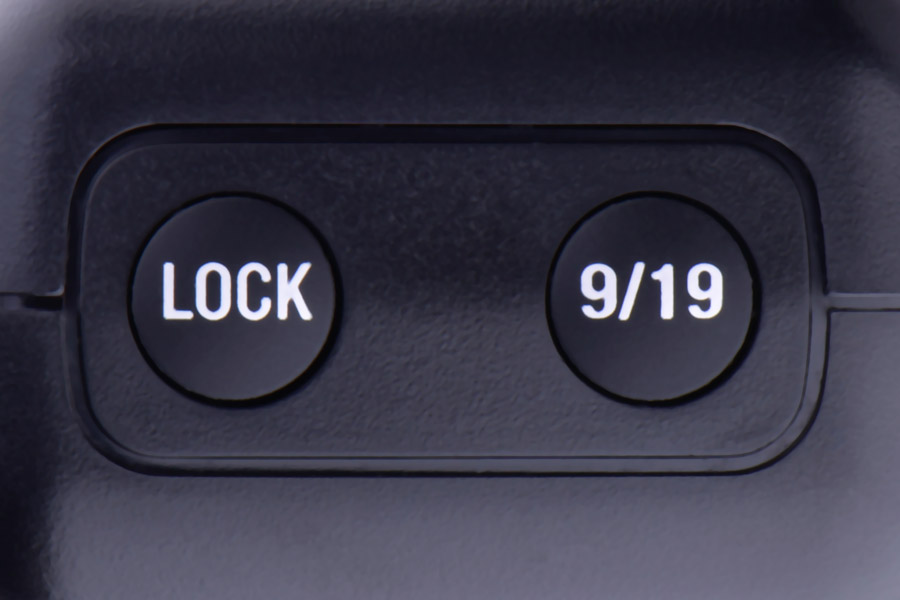

Emergency Call CH. 9/19

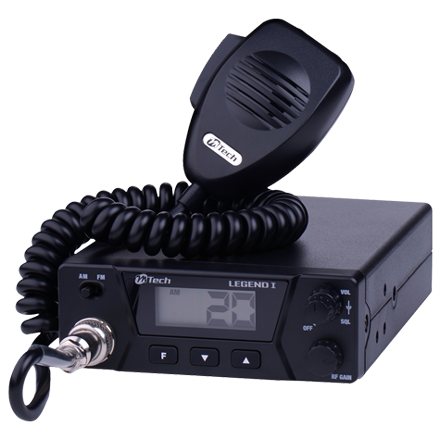

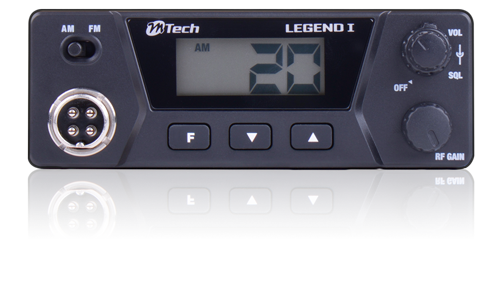

M-TECH LEGEND I - Front View

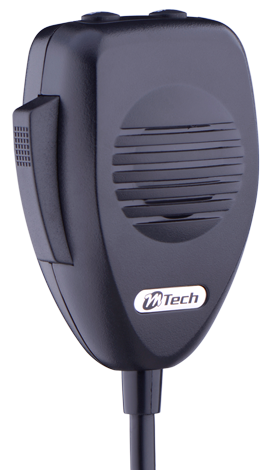

M-TECH LEGEND I - ISO View of MIC
Specifications

General

Channels

40 AM/FM (EU)

Frequency Range

26.965 to 27.405 MHz (EU)

Frequency Control

Phase Locked Loop (PLL) synthesizer

Frequency Tolerance

±600 Hz

Opertating Temperature

-10 °C to +55 °C

Microphone

Electret condenser type microphone with CH. 9/19 key-lock

Input Voltage

13.2 V DC

Current Drain

Tx full mod., 2.0 A max. /
Rx with max. audio output, 1.5 A max.

Dimensions

125(L) x 45(H) x 168(D) mm

Weight

Approx. 0.7 kg

Antenna Connector

UHF, SO-239

LCD Meter

LCD back light (ORG)

Transmitter

Power Output

4 W AM / 4 W FM

Frequency Response

3,000 Hz in AM / FM

Output Impedance

50 ohm, unbalanced

Receiver

Sensitivity

0.7 μV for 20 dB SINAD typical (limit 1.4 μV)

Adjacent Channel
Rejection

66 dB typical


Image Rejection

75 dB typical

I.F. Frequency

Double Conversion Superheterodyne
1st 10.695 MHz
2nd 455 MHz

RF Gain Control Range

Adjustable for optimum reception - More than 20 dB (@ 1 μV)

Squelch

Adjustable; threshold less than 1μV

Audio Output Power

2 W rating into 8 ohm

Frequency Response

300 to 3,000 Hz

Distortion

Less than 10%, 0.5 W 1 KHz
