LEGEND II
Global Standard for
Professional Driver



Selectable AM/FM
Multi-bands



Crystal-clear
LEGEND II
Explore the LEGEND II
LEGEND III
Feature

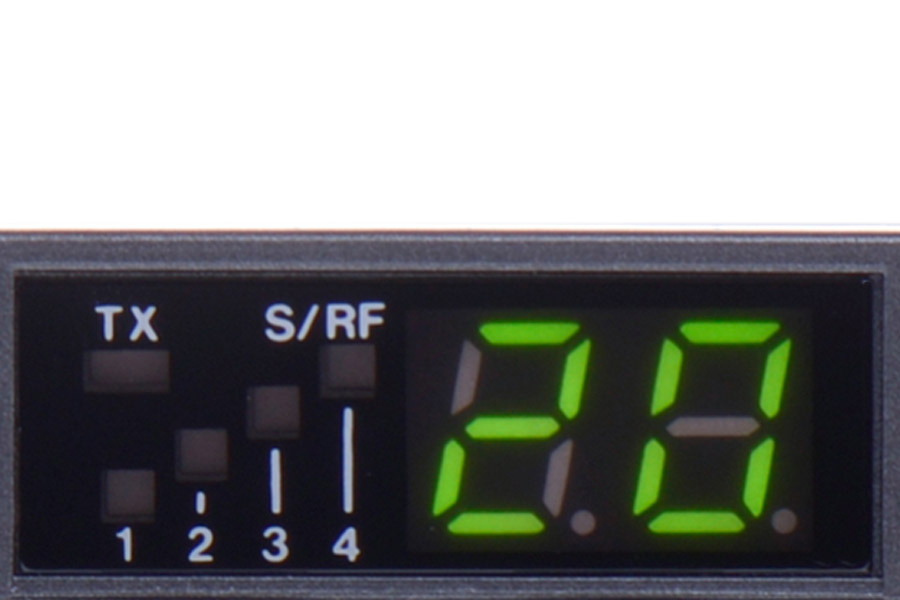

LED Indicating,
S-meter,
Power-meter,
Channel

Feature

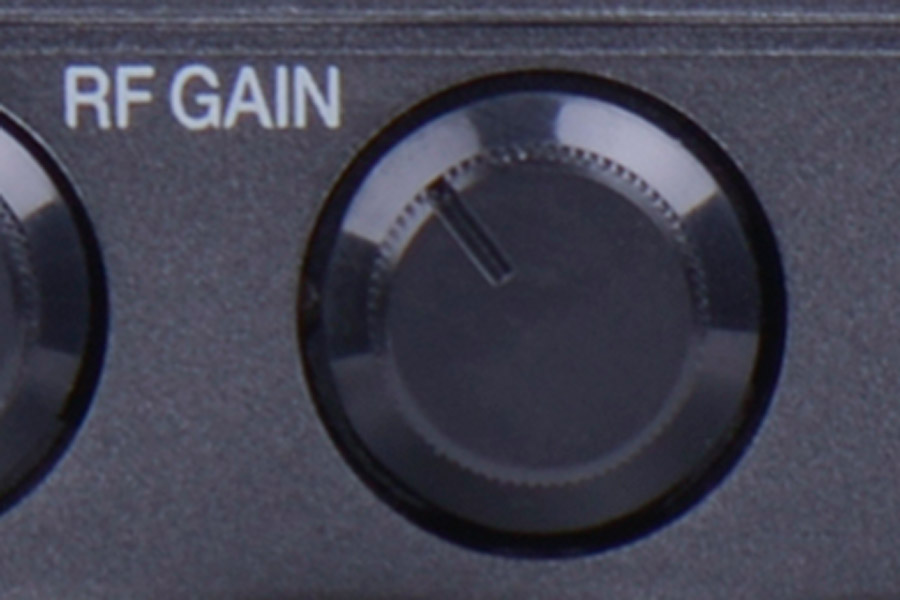

RF Gain

Feature

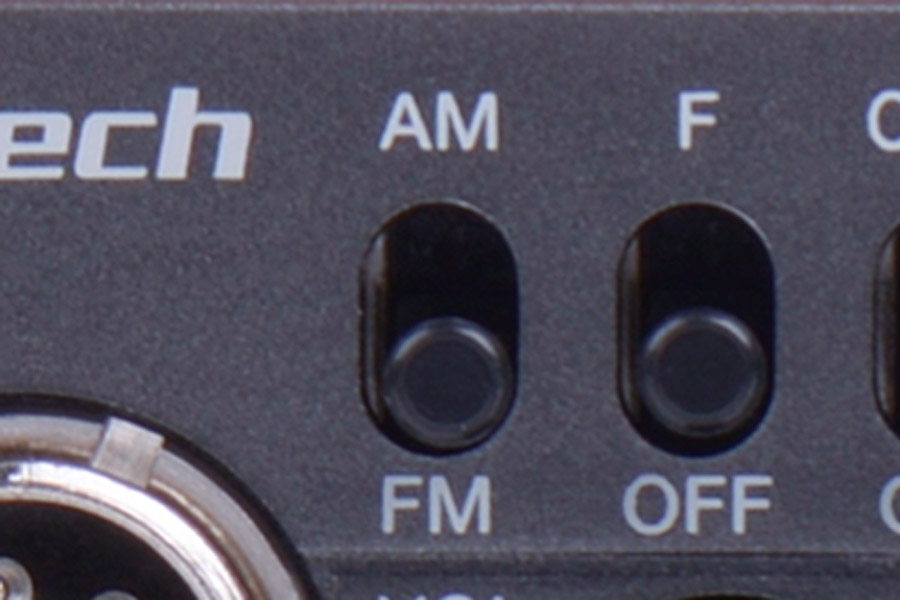

Selectable AM/FM Multi-bands

Feature

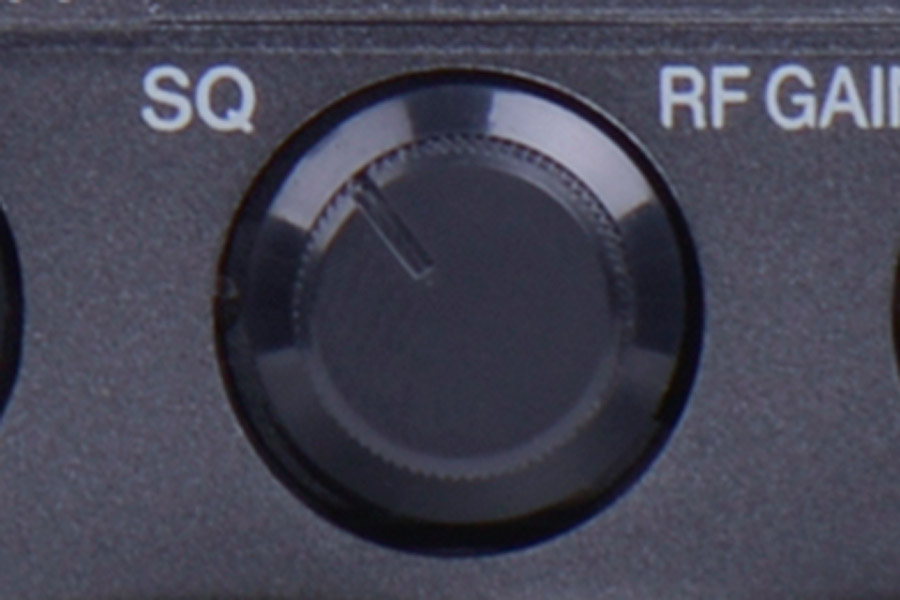

Squelch Control

Feature

Crystal-Clear (Clear Signal)

Feature

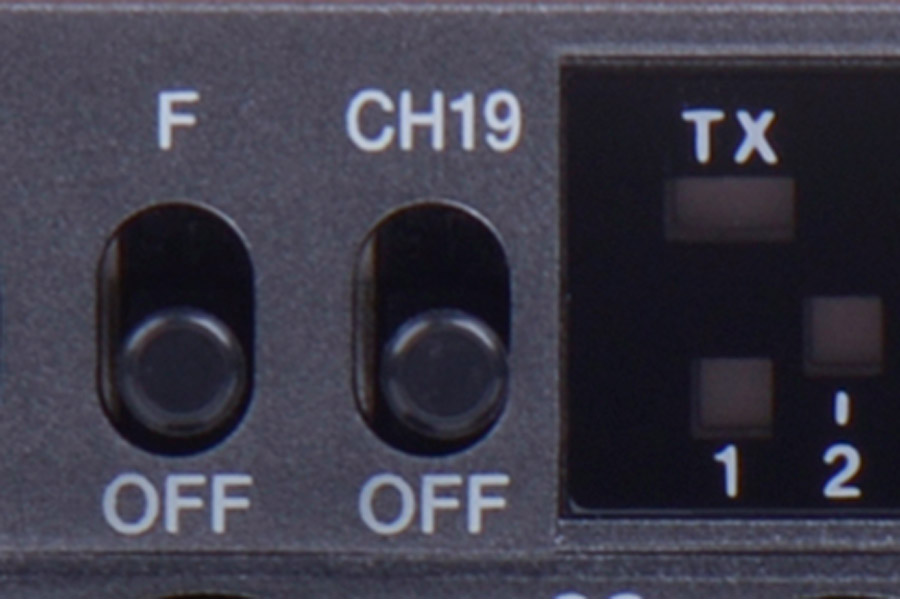

Emergency Call CH. 19

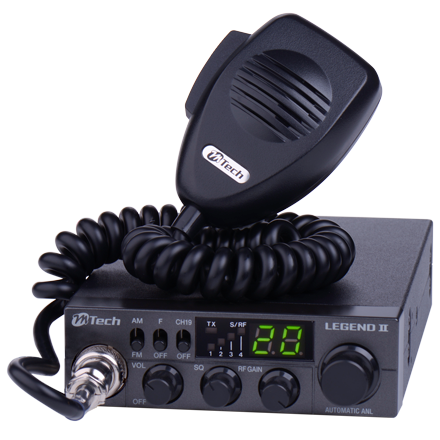

LEGEND II - Front View

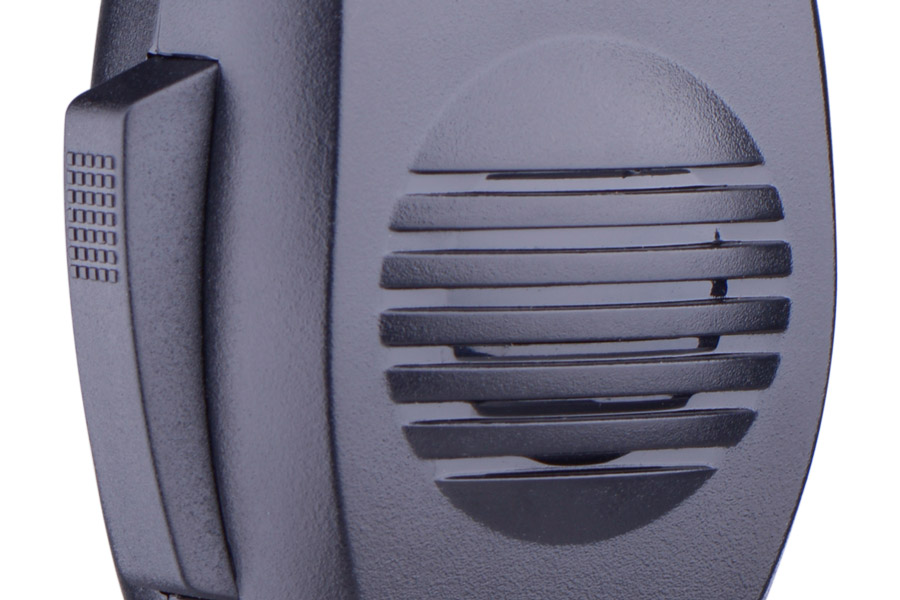

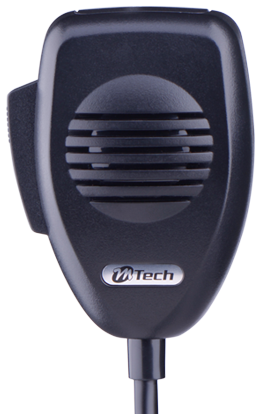

LEGEND II - ISO View of MIC
Specifications

General

Channels

40 AM/FM (Config. E)

Frequency Range

26.965 to 27.405 MHz (Config. E)

Frequency Control

Phase Locked Loop (PLL) synthesizer

Frequency Tolerance

±600 Hz

Opertating Temperature

-10 °C to +55 °C

Microphone

Electret condenser type microphone

Input Voltage

13.2 V DC

Current Drain

Tx full mod., 2.0 A max. /
Rx with max. audio output, 1.5 A max.

Dimensions

115(L) x 35(H) x 180(D) mm

Weight

Approx. 0.8 kg

Antenna Connector

UHF, SO-239

LED Meter

Indicates relative RF output and received signal strength

Filter

ANL (Automatic Nosie Limiter) built-in

Transmitter

Power Output

4 W AM / 4 W FM

Frequency Response

300 - 3,000 Hz in AM / FM

Output Impedance

50 ohm, unbalanced

Receiver

Sensitivity

0.7 μV for 20 dB SINAD typical (limit 1.4 μV)

Adjacent Channel
Rejection

66 dB typical


Image Rejection

75 dB typical

I.F. Frequency

Double Conversion Superheterodyne
1st 10.695 MHz
2nd 455 MHz

RF Gain Control Range

Adjustable for optimum reception -
More than 20 dB (@ 1 μV)

Automatic Gain Control
(AGC)

Less than 10 dB change in audio output for inputs from 10 to 50,000 μV

Squelch

Adjustable; threshold less than 1 μV

Audio Output Power

5 W max. into 8 ohm

Frequency Response

300 to 3,000 Hz

Distortion

Less than 10%, 0.5W 1 KHz
