LEGEND III
Noise Blanker Circuit


I.F. Passband
to Eliminate Interference



Selectable AM/FM
Multi-bands
LEGEND III

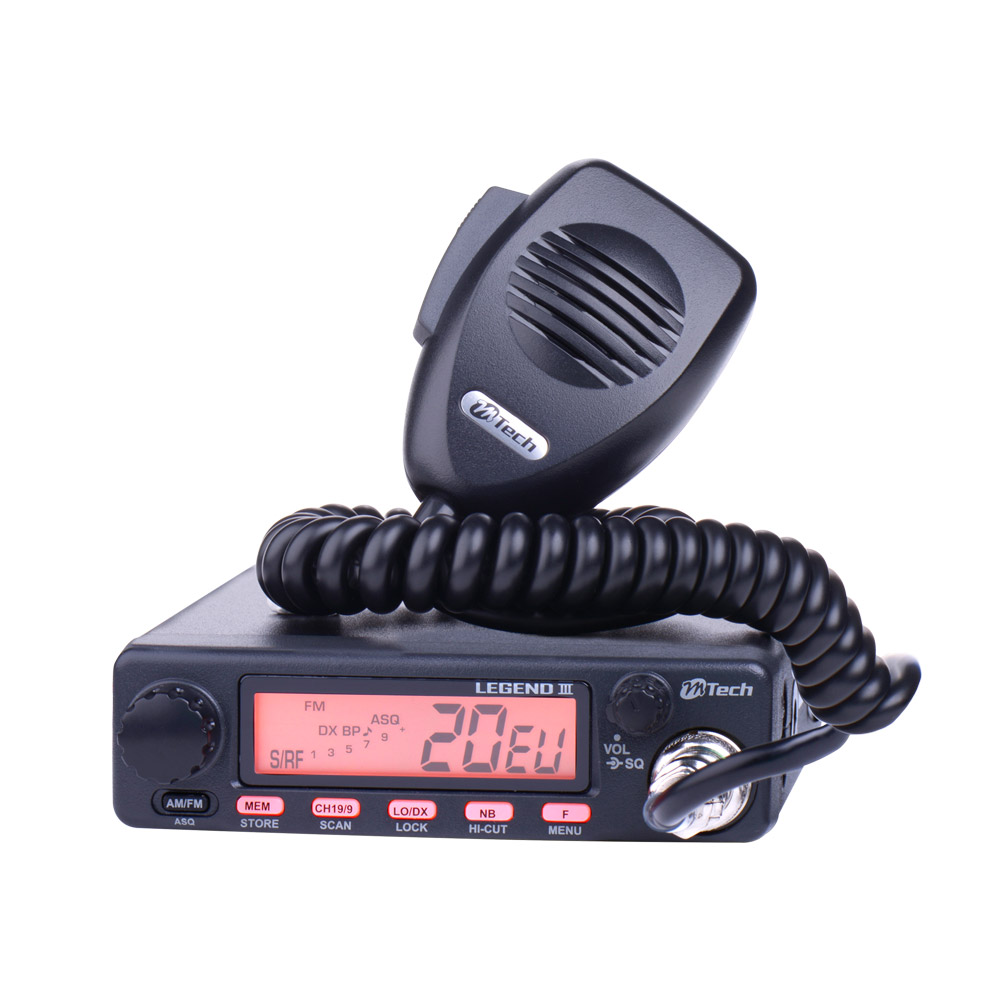

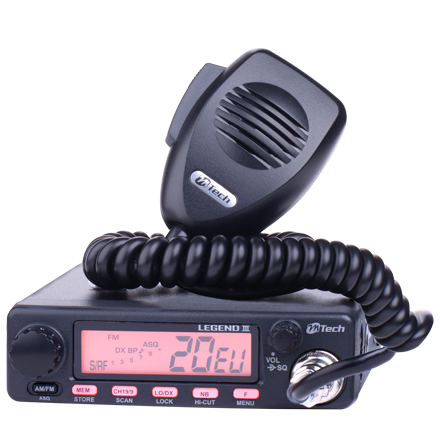

Explore the LEGEND III
LEGEND III
Feature

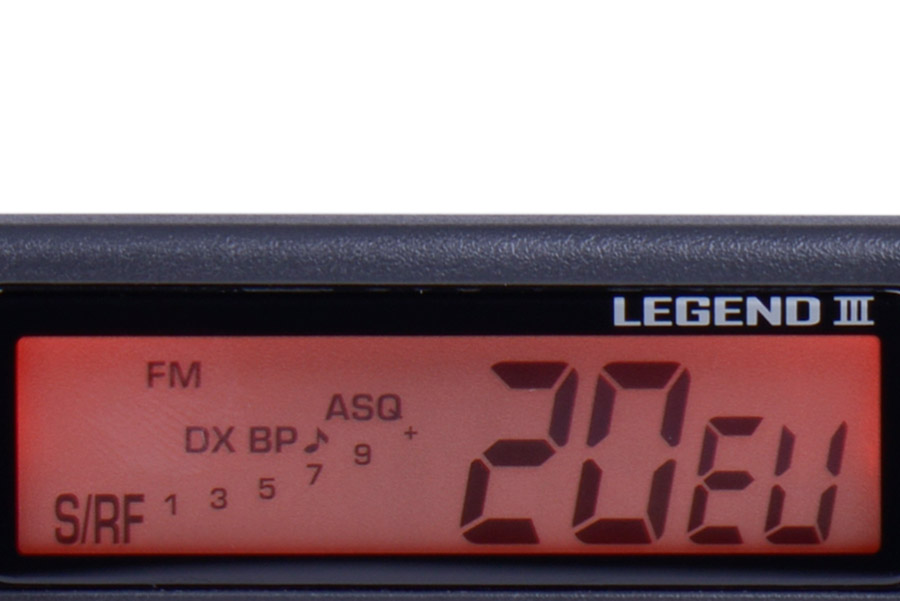

Multi Function LCD
(CH, Tx,
Signal Strength, RF Power)

Feature

VOX Operation, Roger Beep, Key Lock

Feature

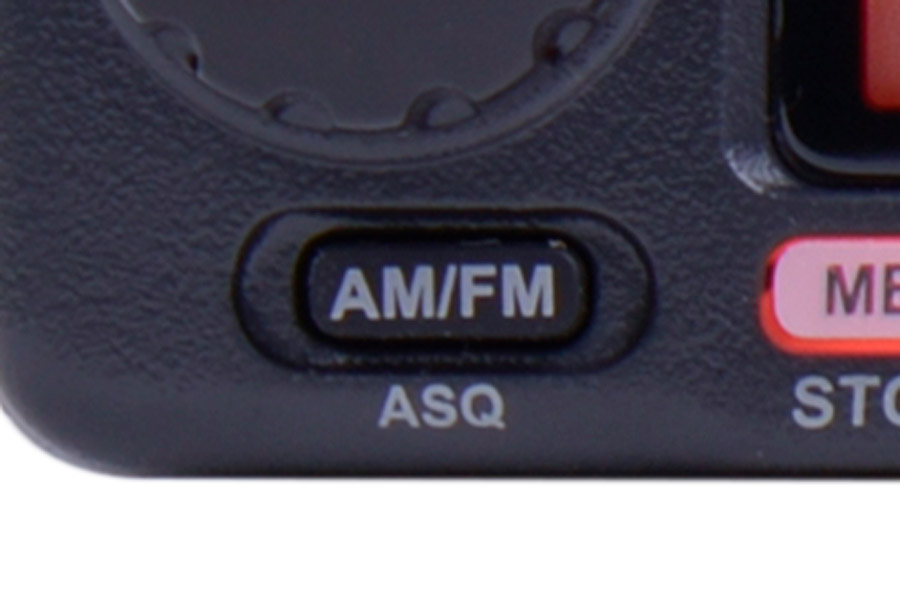

AM/FM Selector Switch

Feature

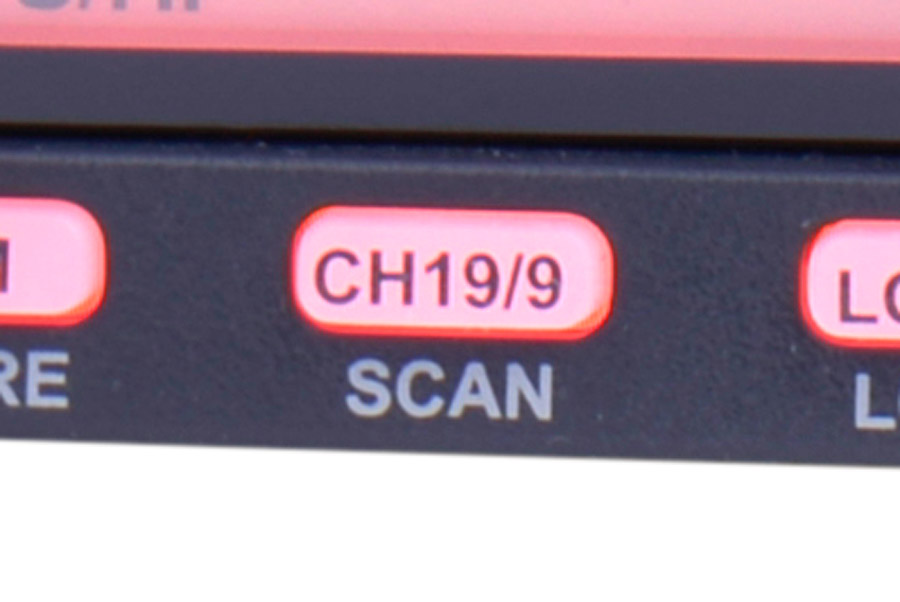

40 AM/FM
Full European Channels

Feature

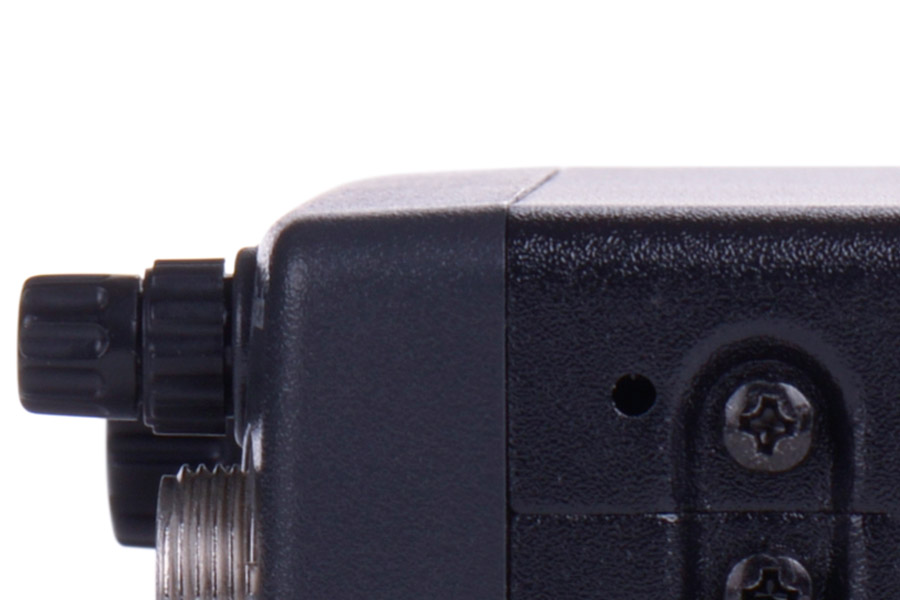

Rugged Heatproof Metal Cabinet

Feature

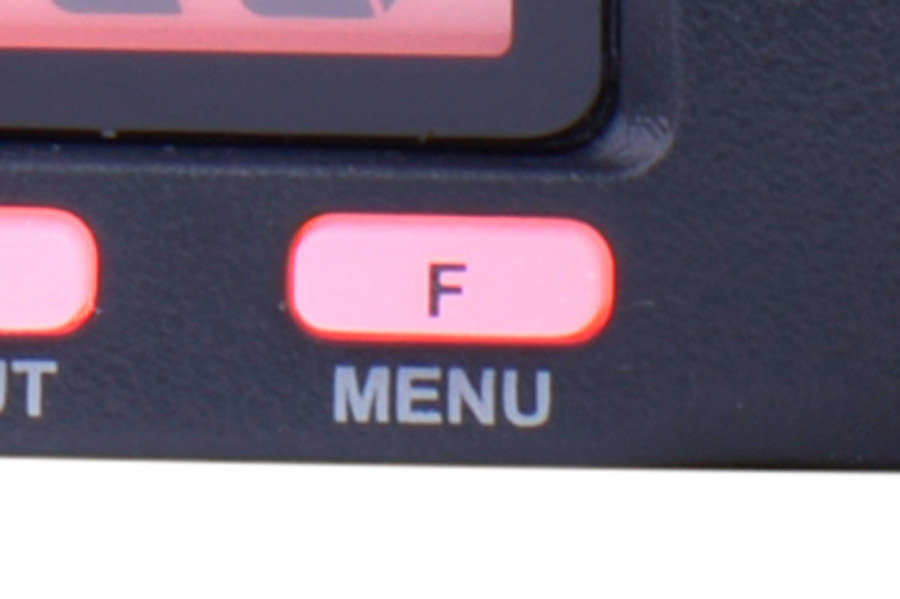

"F" Switch for Country Selection

Feature

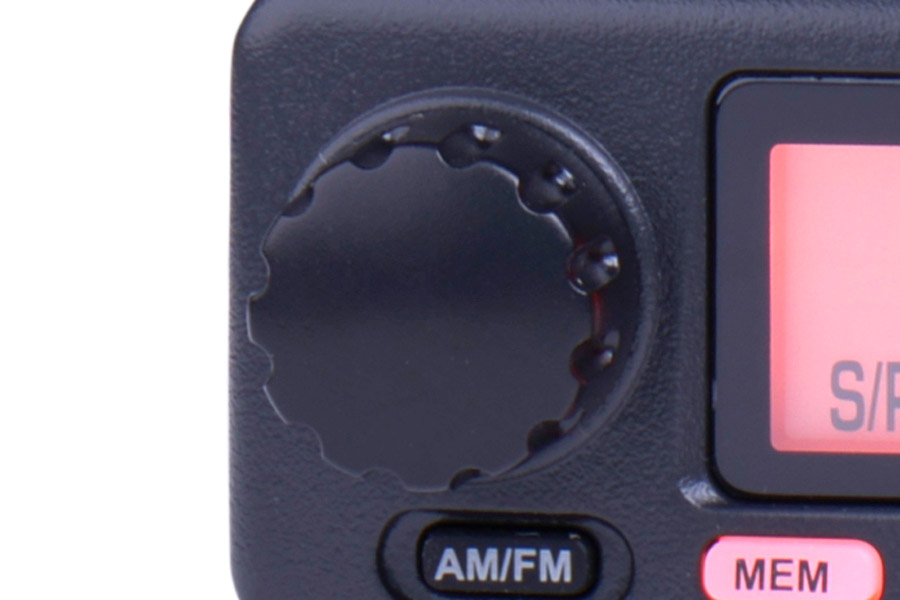

Rotary Channel Selector

Feature

Crystal-Clear (Clear Signal)

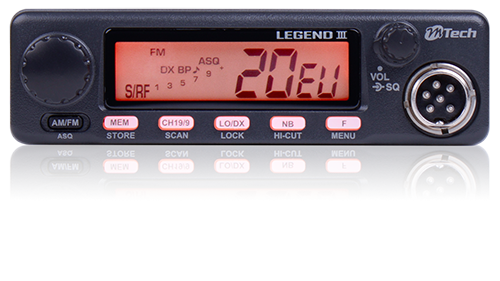

LEGEND III - Front View

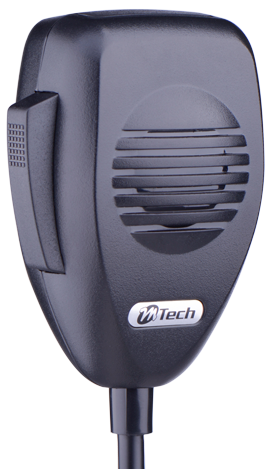

LEGEND III - ISO View of MIC
Specifications

General

Channels

40 AM/FM (EU)

Frequency Range

26.965 to 27.405 MHz (EU)

Frequency Control

Phase Locked Loop (PLL) synthesizer

Frequency Tolerance

±600 Hz

Opertating Temperature

-10 °C to +55 °C

Microphone

Electret condenser microphone

Input Voltage

13.2 V DC

Current Drain

Tx full mod., 2.0A max. /
Rx with max. audio output, 1.5A max.

Dimensions

127(L) x 36(H) x 148(D) mm

Weight

Approx. 0.9 kg

Antenna Connector

UHF, SO-239

LCD Meter

LCD back light (ORG)

Filter

ANL (Automatic Nosie Limiter) built-in

Transmitter

Power Output

4 W AM / 4 W FM

Frequency Response

3,000 Hz in AM/FM

Output Impedance

50 ohm, unbalanced

Receiver

Sensitivity

40.7 μV for 20dB SINAD typical (limit 1.4 μV)

Adjacent Channel
Rejection

66 dB typical


Image Rejection

75 dB typical

I.F. Frequency

Double Conversion Superheterodyne
1st 10.695 MHz
2nd 455 MHz

RF Gain Control

For optimum reception - LOCAL / DX

Automatic Gain Control
(AGC)

Less than 10 dB change in audio output for inputs from 10 to 50,000 μV

Squelch

Adjustable; threshold less than 1 μV

Audio Output Power

2 W rating into 8 ohm

Frequency Response

300 to 3,000 Hz

Distortion

Less than 10%, 0.5W 1KHz
