LEGEND IV
Iconic Functions Display
Operate Like Smart-phone



Large Display with
5 Colors Back Light Control



Freedom to Move with
Extended Cord



Integrating Power Audio

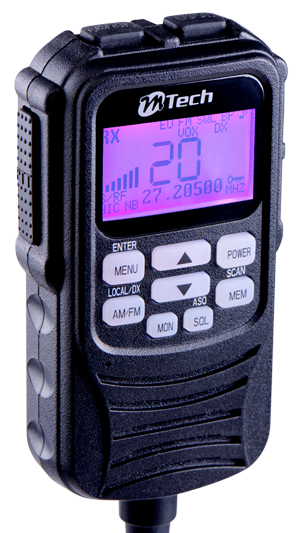

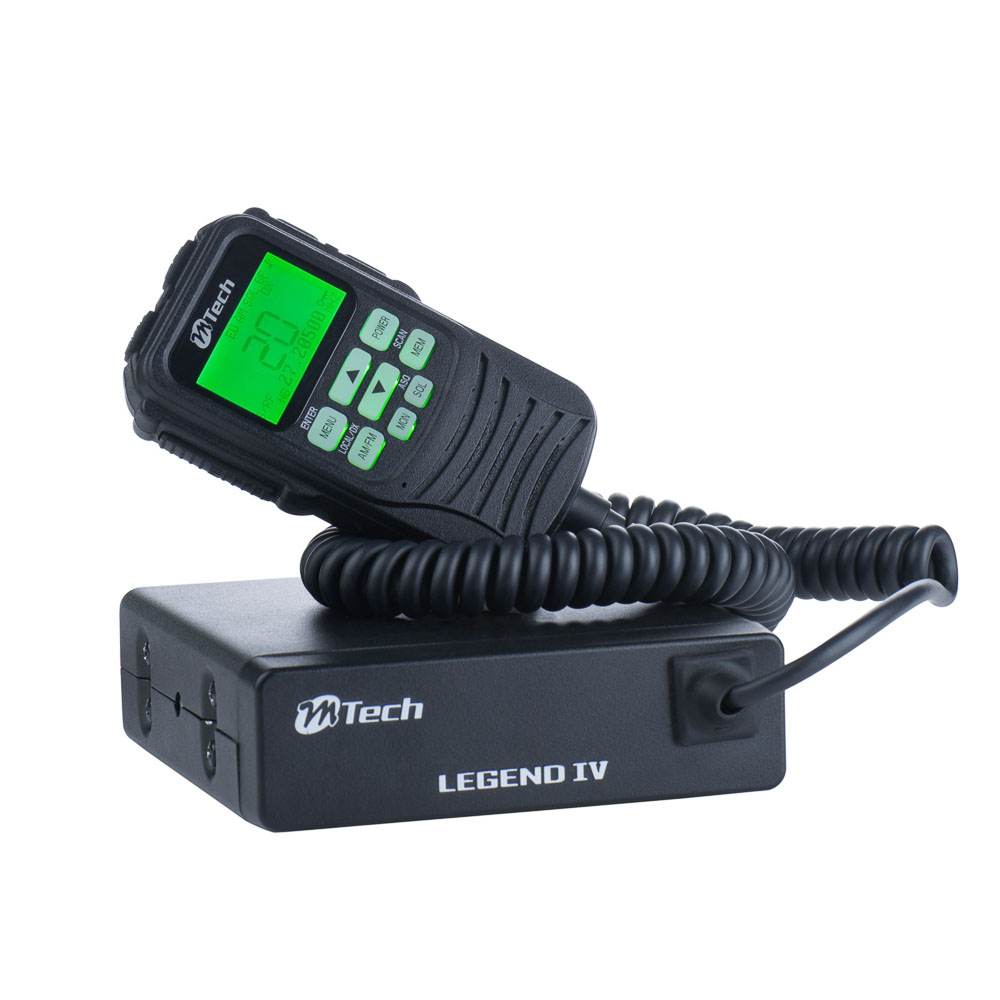

LEGEND IV - ISO View of MIC
Explore the LEGEND IV
LEGEND IV
Feature

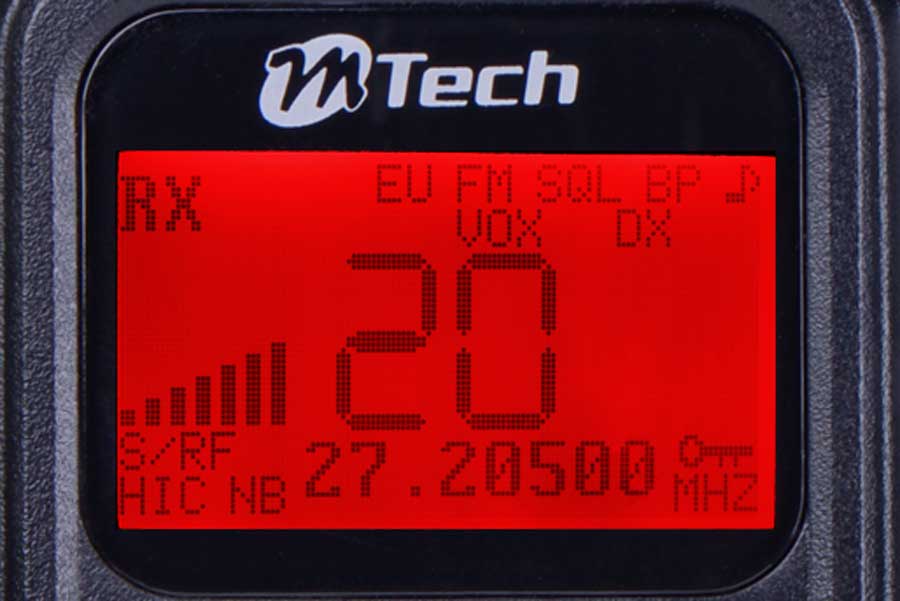

Dot Matrix LCD
(CH, Tx, Signal Strength, Frequency)

Feature

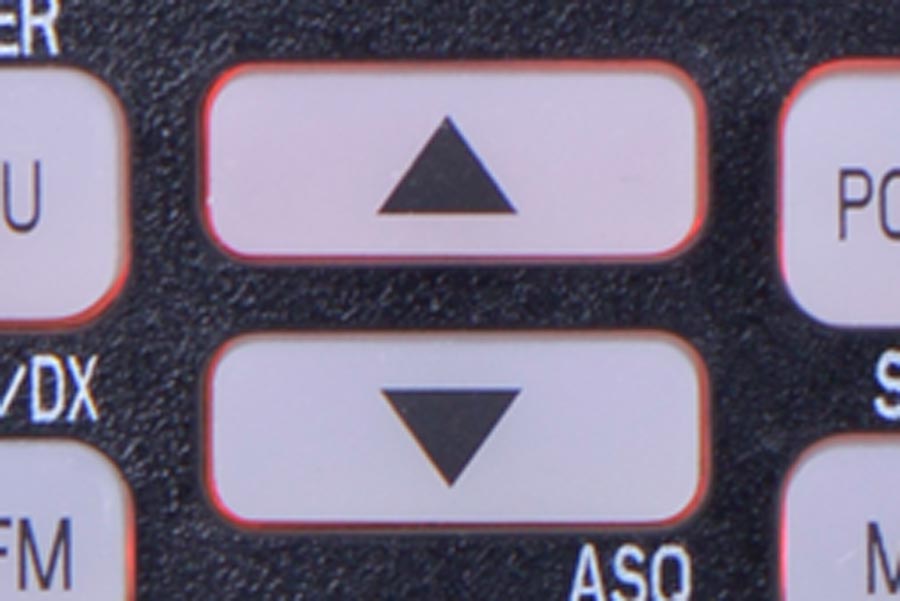

VOX Operation, Roger Beep, Key Lock, CTCSS/DCS

Feature

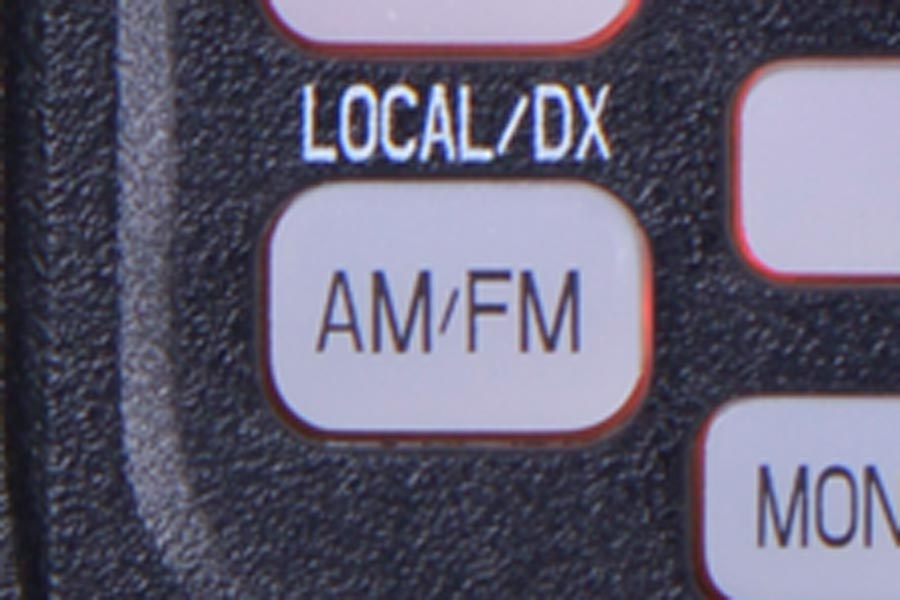

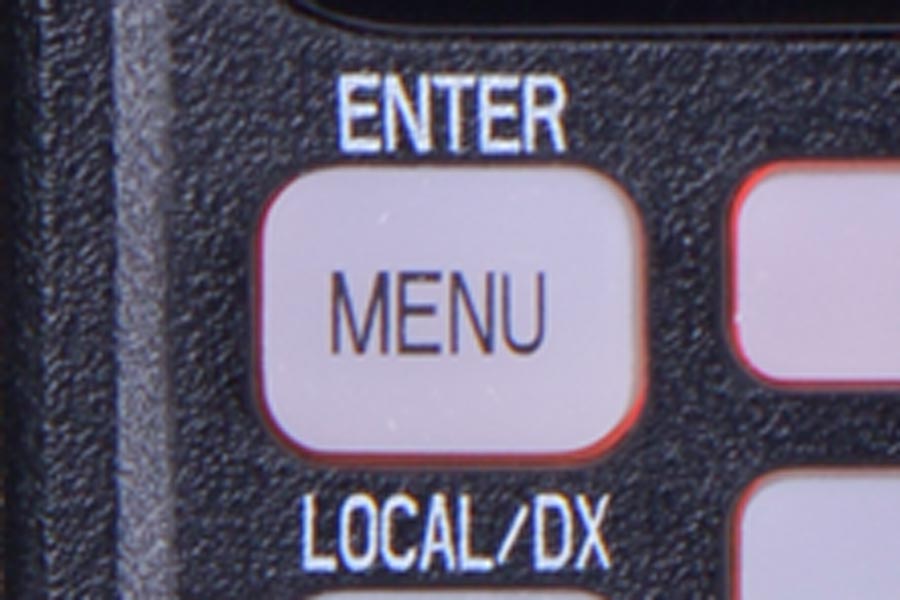

AM/FM Selector Switch

Feature

40 AM/FM
Full European Channels

Feature

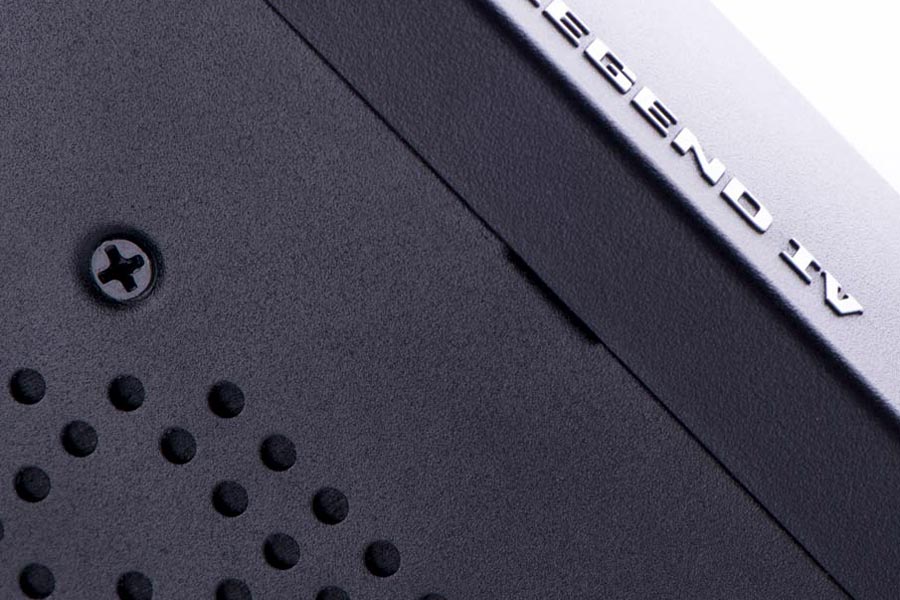

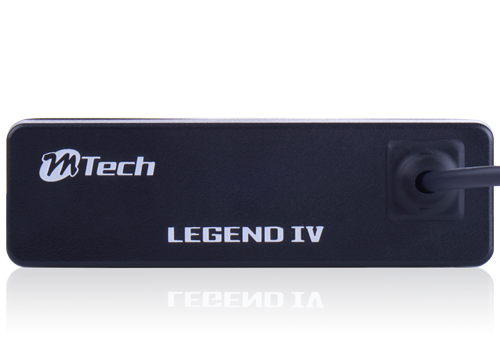

Rugged Heatproof Metal Cabinet

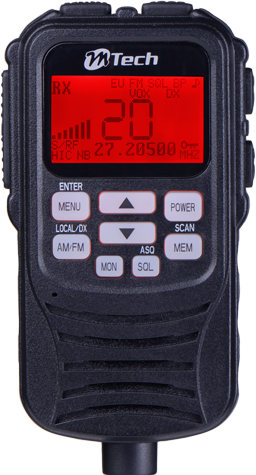

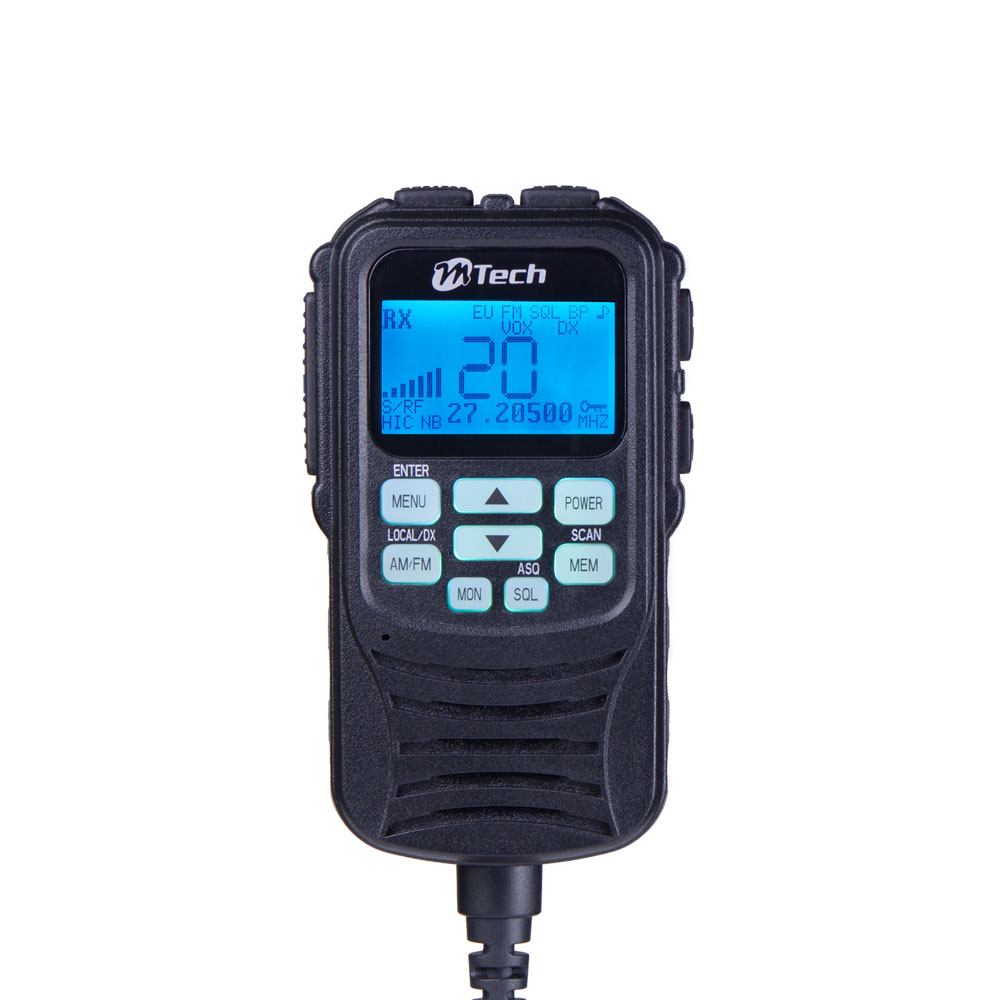

LEGEND IV - Front View of MIC
Specifications

General

Channels

40 AM/FM (EU)

Frequency Range

26.965 to 27.405 MHz (EU)

Frequency Control

Phase Locked Loop (PLL) synthesizer

Frequency Tolerance

±600Hz

Opertating Temperature

-10 °C to +55 °C

Microphone

Electret condenser Microphone

Input Voltage

13.2 V DC

Current Drain

Tx full mod., 2.0A max. /
Rx with max. audio output, 1.5A max.

Dimensions

125(L) x 38(H) x 126.5(D) mm

Weight

Approx. 0.7 kg

Antenna Connector

UHF, SO-239

LCD Display

Dot Matrix LCD

Filter

Hi cut/ Noise Blanker

Transmitter

Power Output

4W AM / 4W FM

Frequency Response

3,000 Hz in AM/FM

Output Impedance

50 ohm, unbalanced

Receiver

Sensitivity

0.2 μV for 12dB SINAD typical

Image Rejection

75 dB typical

I.F. Frequency

Double Conversion Superheterodyne
1st 10.695 MHz
2nd 455 MHz

RF Gain Control

For optimum reception - LOCAL / DX

Automatic Gain Control
(AGC)

Less than 10dB change in audio output for inputs from 10 to 50,000μV

Squelch

Adjustable; threshold less than 1μV

Audio Output Power

2W rating into 8 ohm

Frequency Response

300 to 3,000 Hz

Distortion

Less than 10%, 0.5W 1KHz
