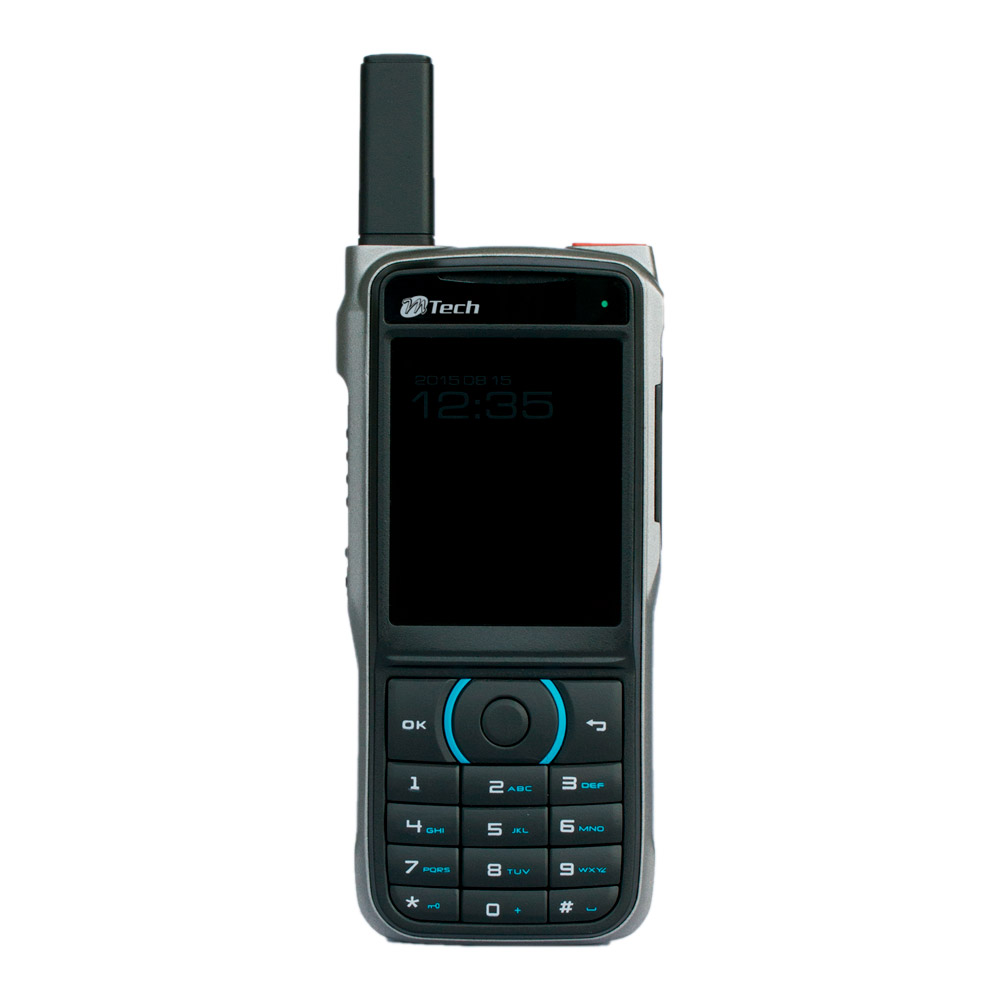

D-860E

Digital Portable Radio

SKU: D-860E Categories: ,

Feature

  • Digital and analog supported
  • High spectrum efficiency
  • Ultra-thin design
  • Voice encryption
  • 2-inch large TFT screen
  • Longer standby
  • Multiple calling modes
  • Noise suppression and exceptional voice clarity
  • Time-out channel lockout ensuring effective channel use

Specifications

Channels

256

Frequency Range

136–174MHz/ 350 –400MHz/ 400–470MHz

Modulation

11K0F3E @12.5KHz 16K0F3E @25KHz

4FSK Digital Modulation

12.5KHz Data Only: 7K60FXD; 12.5 KHz Data & Voice: 7K60FXW

Modulation Limiting

±2.5KHz @12.5KHz; ±5KHz @25KHz

Channel Spacing

12.5KHz/ 25KHz

Frequency Stability

±1.5ppm

Input Voltage

3.7V (Rated)

Battery

1500mAh

Operating Temperature Range

-20°C to +55°C

Storage Temperature Range

-40°C to 85°C

Antenna Impedance

50ohm

Water Resistance

IP54 Standard

Electro-Static Discharge

IEC 61000-4-2 (Level 4); ±8kV (Contact); ±15kV (Air)

Output Power

2W (Power)

Adjacent Channel Power

-60dB @12.5KHz; -70dB @25KHz

Audio Response

+1 to -3dB

Audio Distortion

≤3%

Receiver Sensitivity

0.3μV/ BER5%

Audio Output Power

0.5W (Rated)

Distortion

≤3% (Rated)

Conducted Spurious Emission

Less than -57dBm

Dimensions

58(W) x 157(H) x 48(D) mm (Projections not included)

Weight

Approx. 163g
