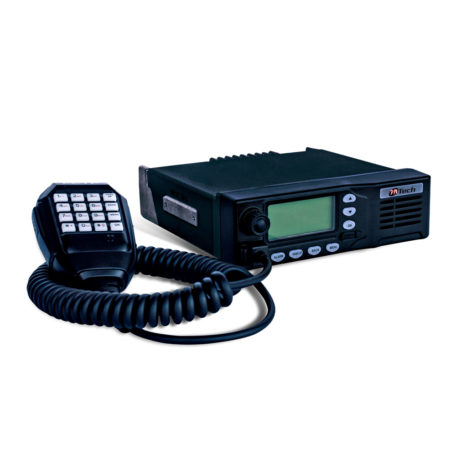

D-660

Digital Vehicle-Mounted Station

SKU: D-660 Category:

Feature

  • Vehicle-mounted, PDT, ARC and DPMR
  • Edge-cutting digital voice coding technology
  • Individual call, group call, all call of voice and data, remote shutdown/ activation, and emergency alarm
  • Manual switch between relay mode and direct mode
  • GPS/ BDS
  • Maximum adjustable 40W power
  • 2.0 inch high resolution LCD display

Specifications

Frequency Range

136–174MHz/ 350–400MHz/ 400–470MHz

Channel Bandwidth

12.5kHz

Output Power

40W Max.

TX Transient Adj CH Pwr

±12.5kHz ≤-50 dB

Digital Modulation Accuracy

5% (Normal)

Digital TX Audio SNR

40dB

Digital Rx Sensitivity

Max. -116dBm/BER ≤1% (Normal); Max. -118dBm/BER ≤ 5% (Extreme)

Stg Sig Digi Rx BER

BER ≤0.01%/10dBm

Dyn Fading Digi Rx BER

BER ≤5%/-108dBm (8KM/H and 100KM/H)

Operating Temperature Range

-20°C to +55°C

Antenna Impedance

50ohm

Meter

2.0 inch LCD display

Audio Output Power

2W (Rated)

Distortion

≤3%

GPS

Support

GPS Cold Start

Less than 1 minute (Time to 1st fix)

GPS Hot Start

Less than 30 seconds (Time to 1st fix)

GPS Horizontal Accuracy

10m

Dimensions

160(L) x 173.8(H) x 48.8(D) mm

Weight

Approx. 1.1kg
