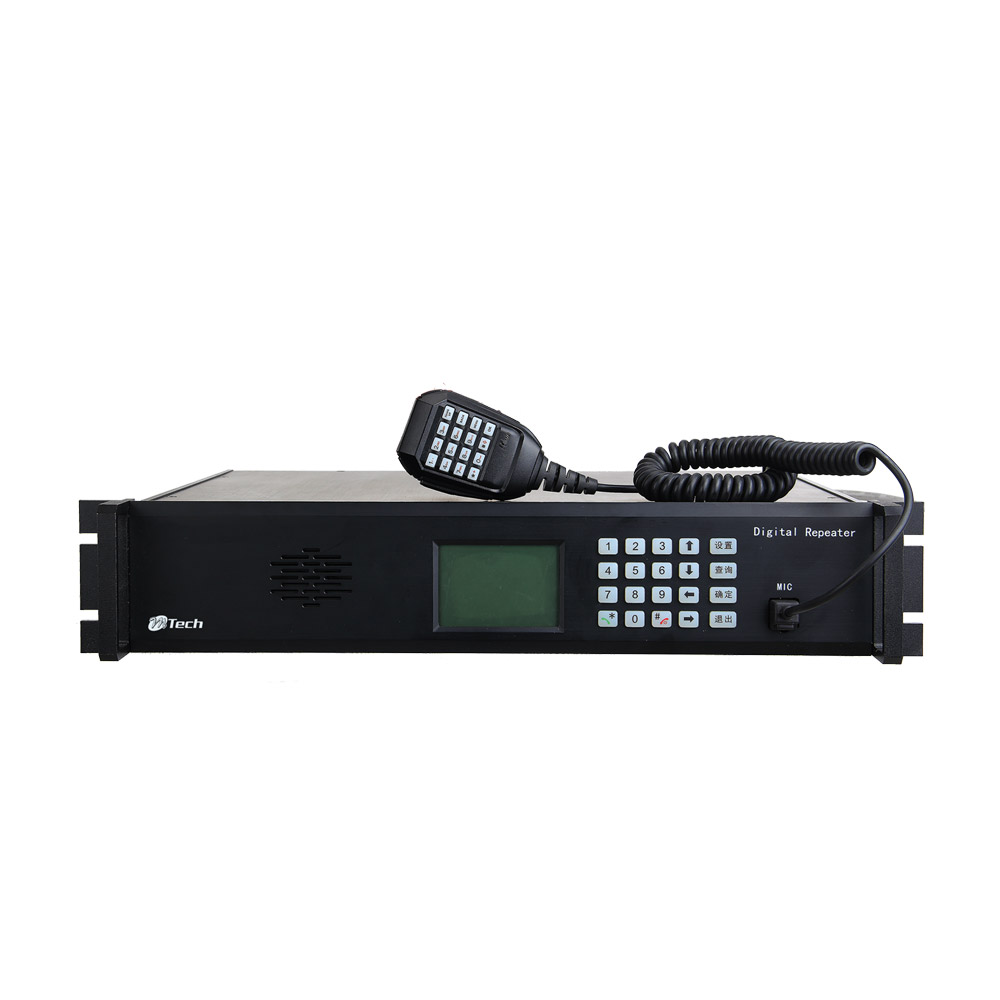

STD-580A

UHF Repeater

SKU: STD-580A Category:

Feature

  • Modularized design with high reliability
  • Flexible deployment
  • Flexible installation method
  • Voice record

Specifications

Frequency Range

136–174MHz, 350–400MHz, 400–470 MHz

Channel Bandwidth

12.5kHz

Output Power

5W (Low)/ 10W (Middle)/ 25W (High)

Digital Modulation Accuracy

5% (Normal)

Digital TX Audio SNR

40dB

Digital Rx Sensitivity

Max. -120dBm/BER ≤1% (Normal); Max. -123dBm/BER ≤ 5% (Extreme)

Stg Sig Digi Rx BER

BER ≤0.01%/10dBm

Dyn Fading Digi Rx BER

BER ≤5%/-108dBm (8KM/H and 100KM/H)

Receiving Audio SNR

40dB

Operating Temperature Range

-20°C to +55°C

Antenna Impedance

50ohm

Audio Output Power

2W

Distortion

≤3%

Installation

19-inch rack | Rack | Desktop installation

Dimensions

480(L) x 88(H) x 410(D) mm

Weight

Approx. 11kg
