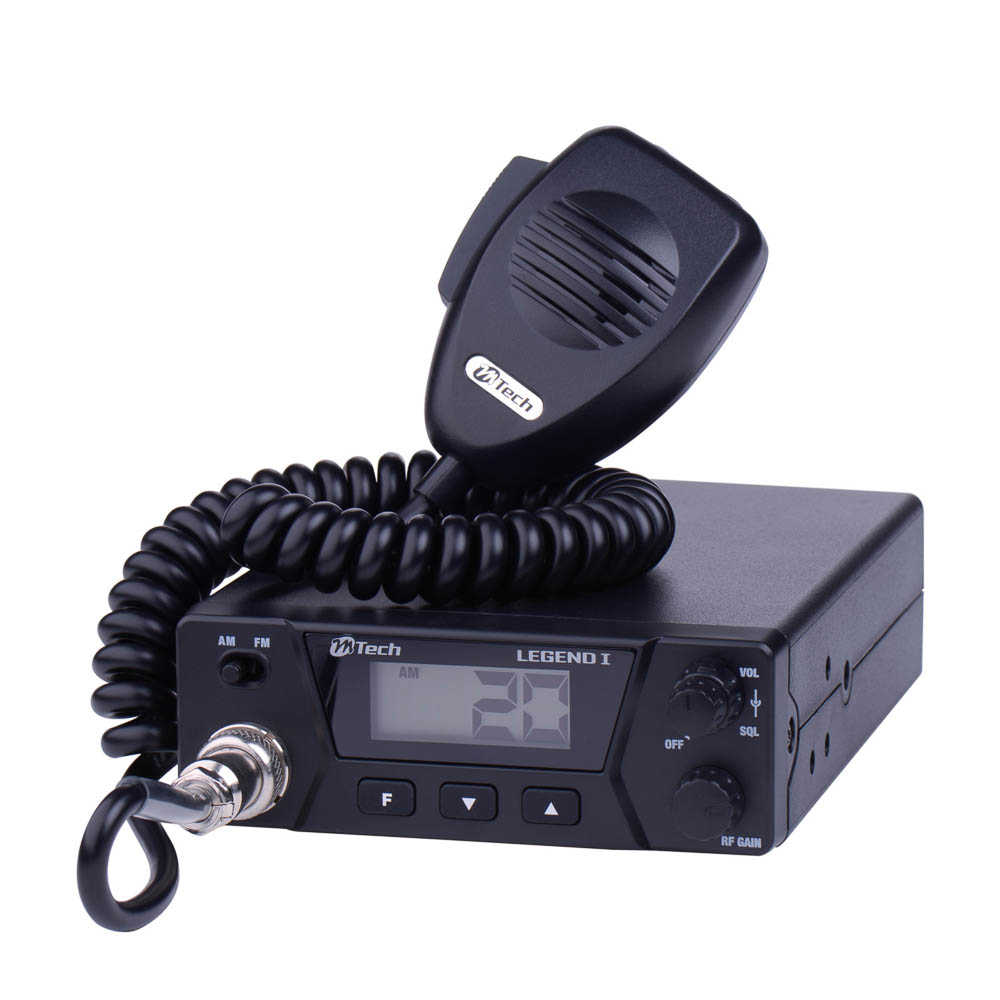

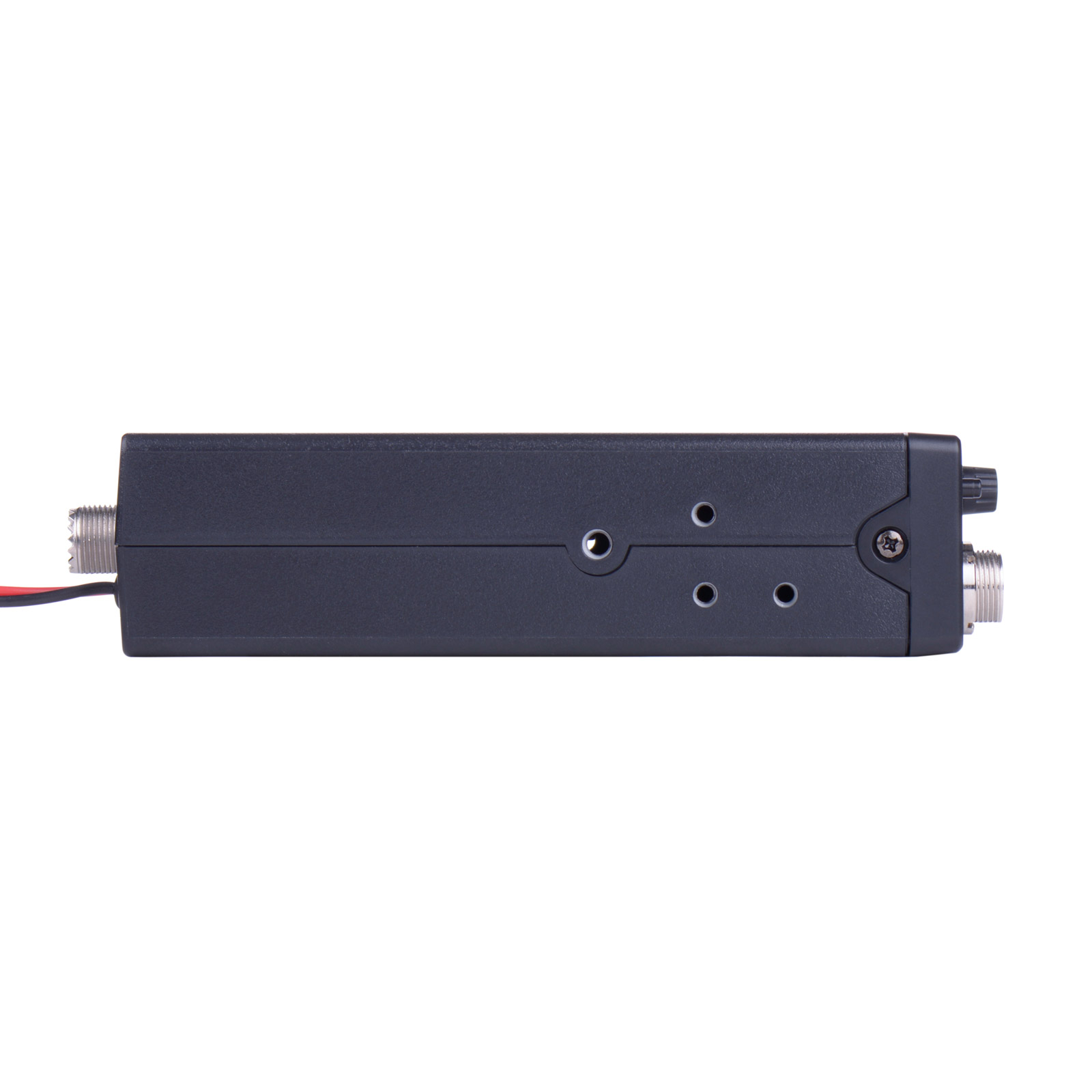

LEGEND I

Feature

Channels	40 AM/FM (EU)
Frequency Range	26.965-7.405MHz (EU)
Frequency Control	Phase Locked Loop (PLL) Synthesizer
Frequency Tolerance	±600Hz
Input Voltage	13.2V DC
Current Drain	2.0A max. (Tx full mod.)/ 1.5A max. (Rx with max. audio output)
Operating Temperature Range	-10°C to +55°C

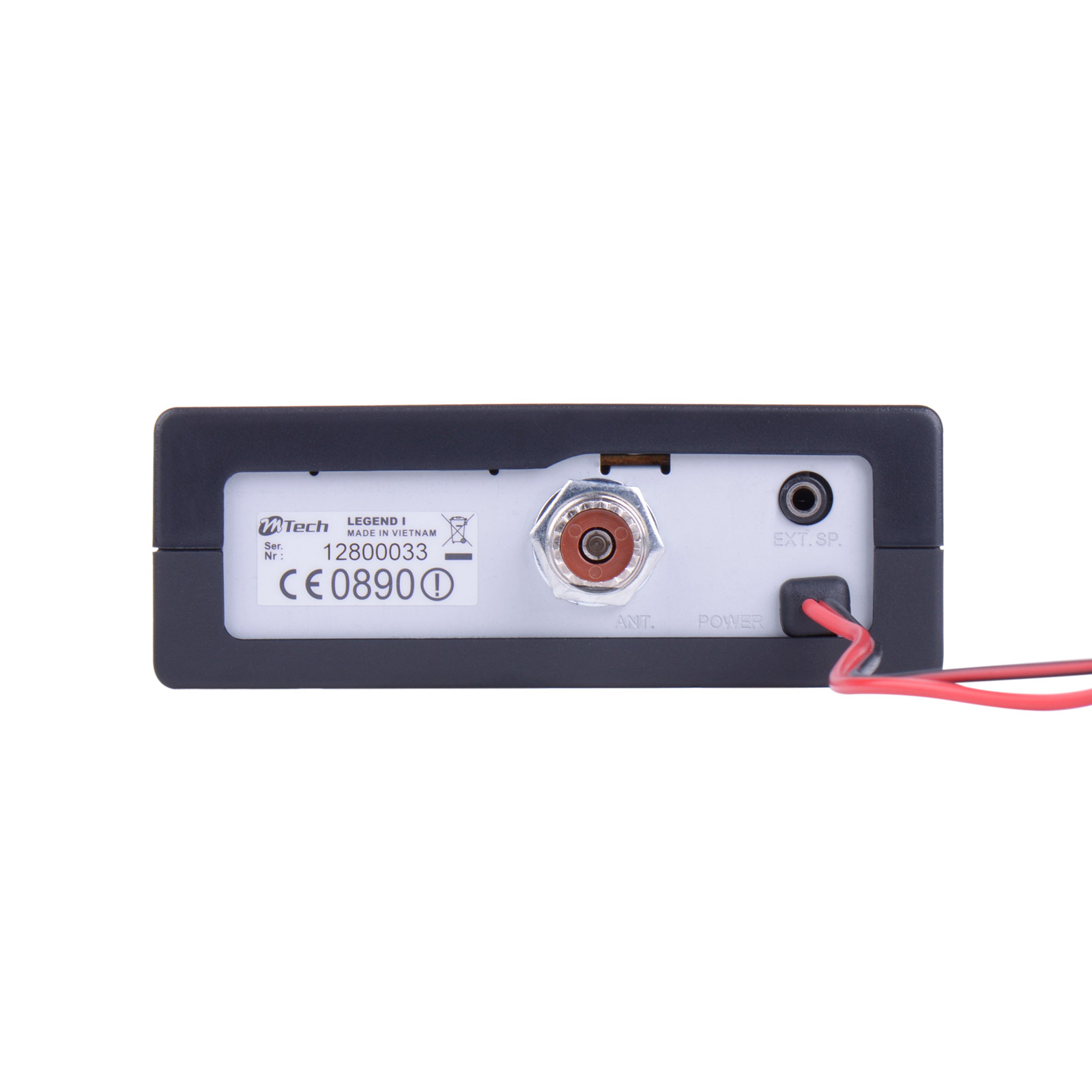

Antenna Connector	SO-239 (UHF)

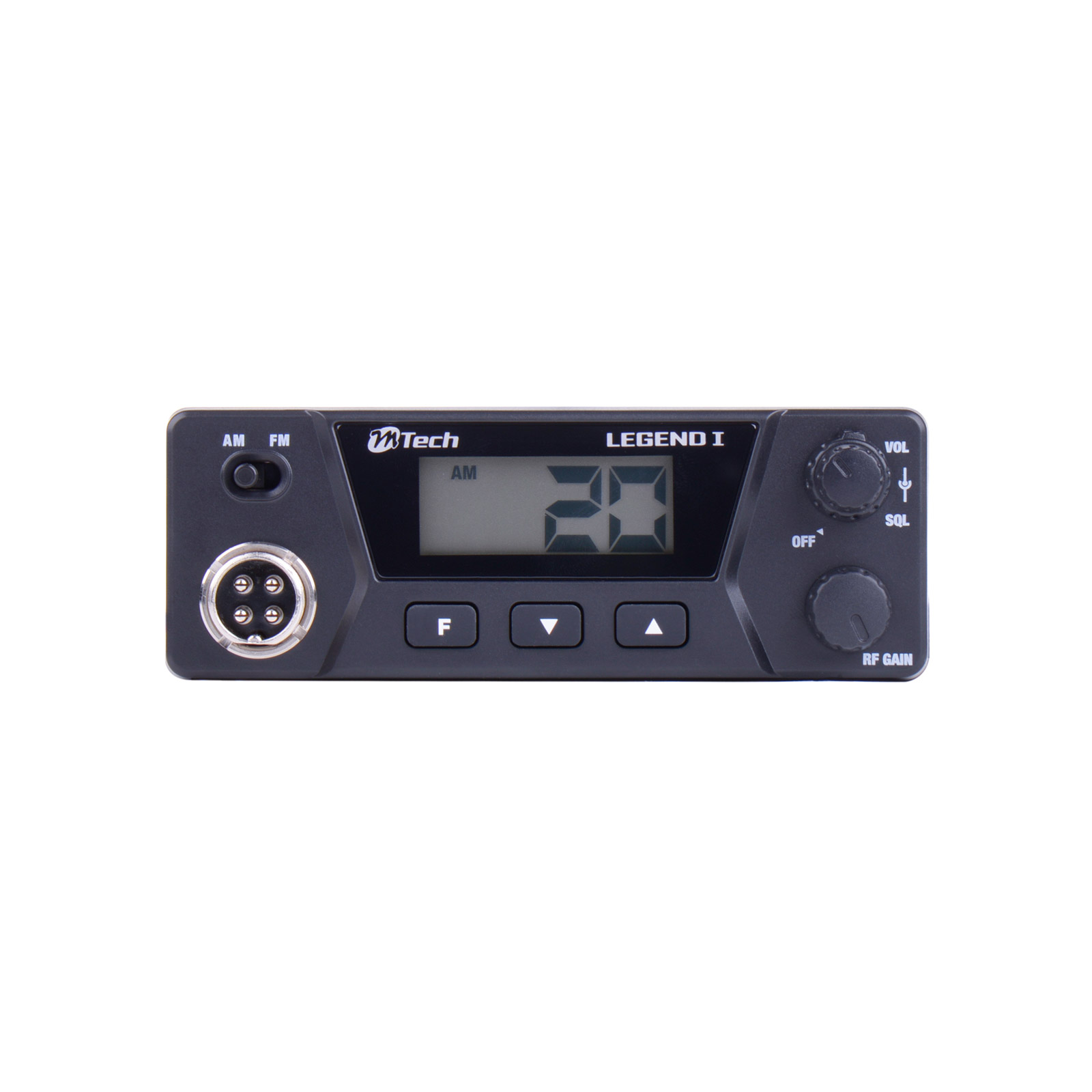

Meter	LCD back light (ORG)

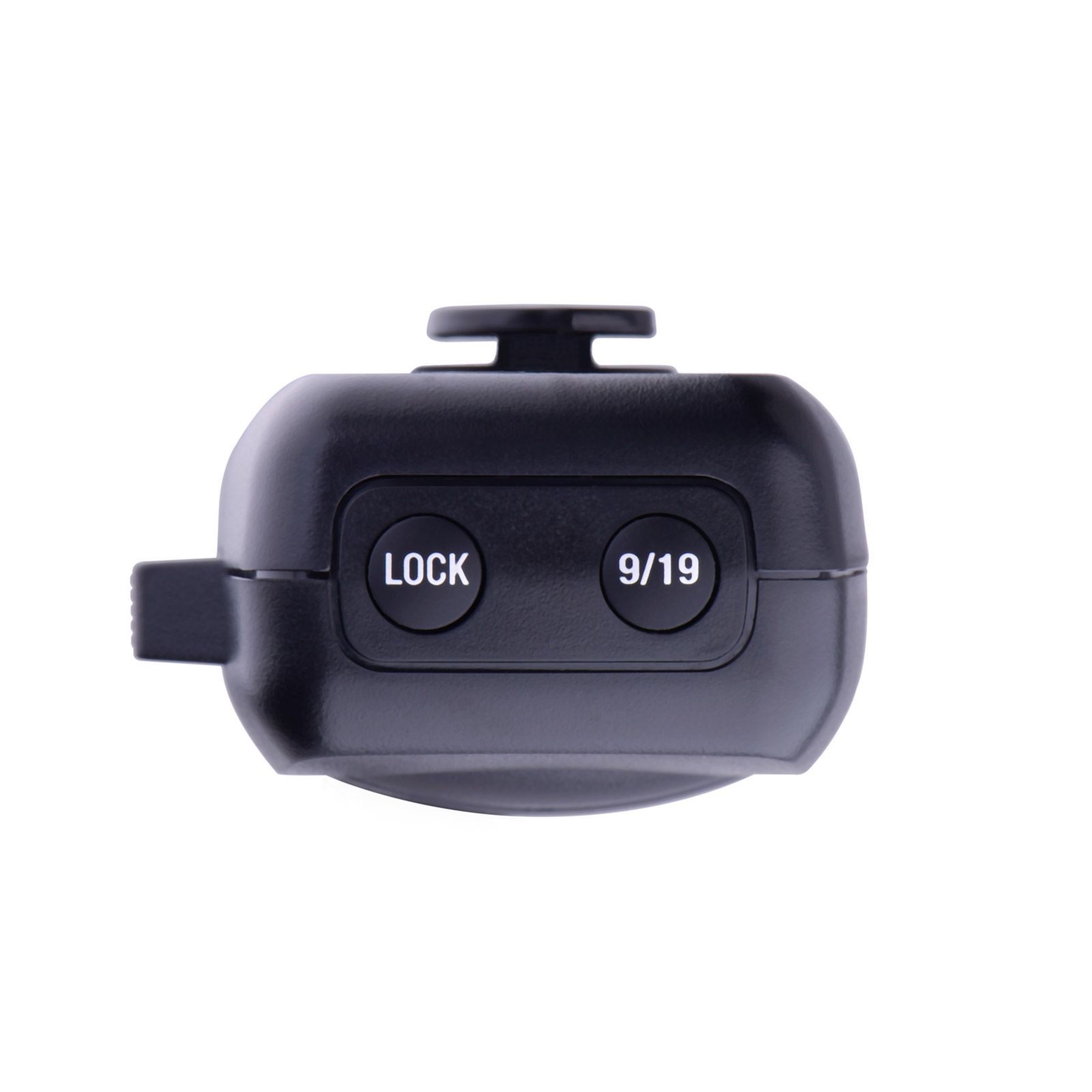

Microphone	Electret condenser type microphone with CH. 9/19 key-lock
Filter	ANL (Automatic Nosie Limiter) built-in
Output Power	4W (AM)/ 4W (FM)
Output Impedance	50ohm (Unbalanced)
Sensitivity	0.7uV for 20dB SINAD typical (Limit 1.4uV)
Adjacent Channel Rejection	66dB typical
Image Rejection	75dB typical
I.F. Frequency	Double Conversion Superheterodyne 1st:10.695MHz; 2nd:455MHz
RF Gain Control Range	Adjustable for optimum reception – More than 20dB (@1 uV)
Squelch	Adjustable (Threshold less than 1uV)
Audio Output Power	2W rating into 8ohm
Frequency Response	300 to 3000Hz
Distortion	<10%; 0.5W 1KHz
Dimensions	125(L) x 45(H) x 168(D) mm
Weight	Approx. 700g
