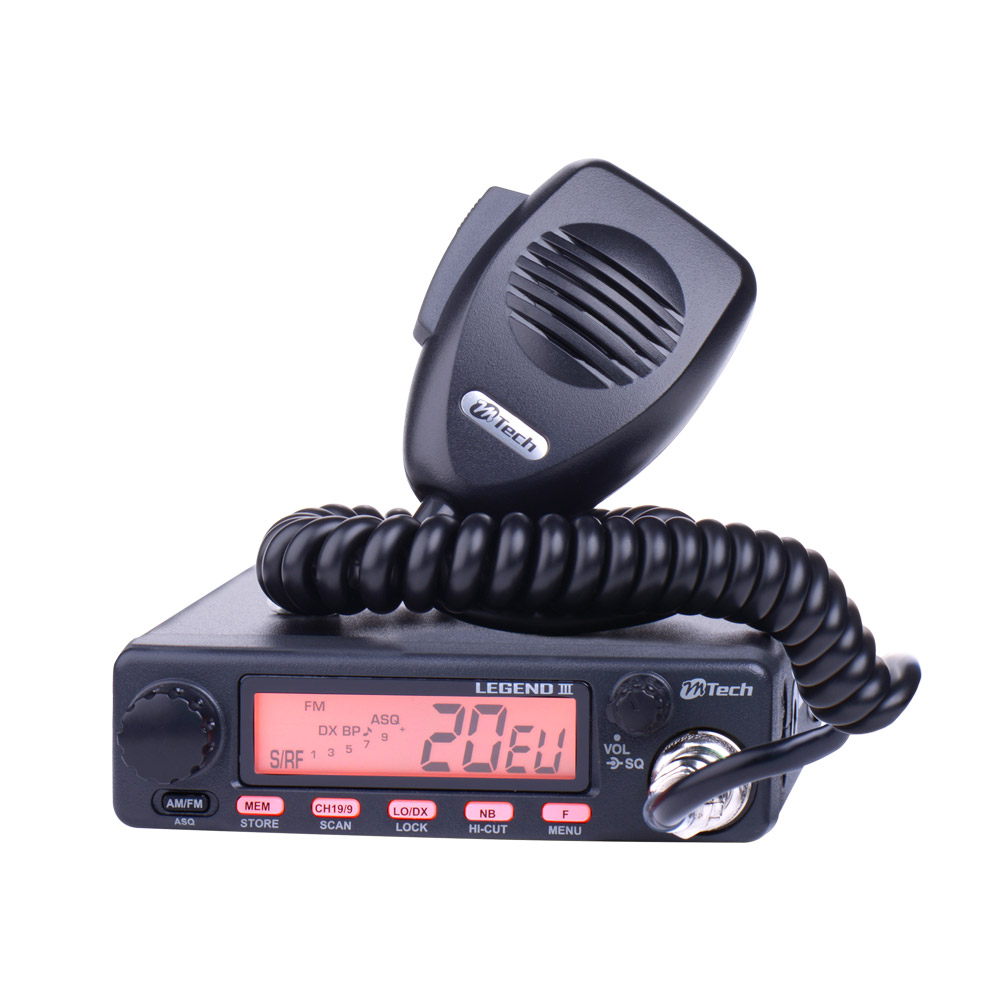

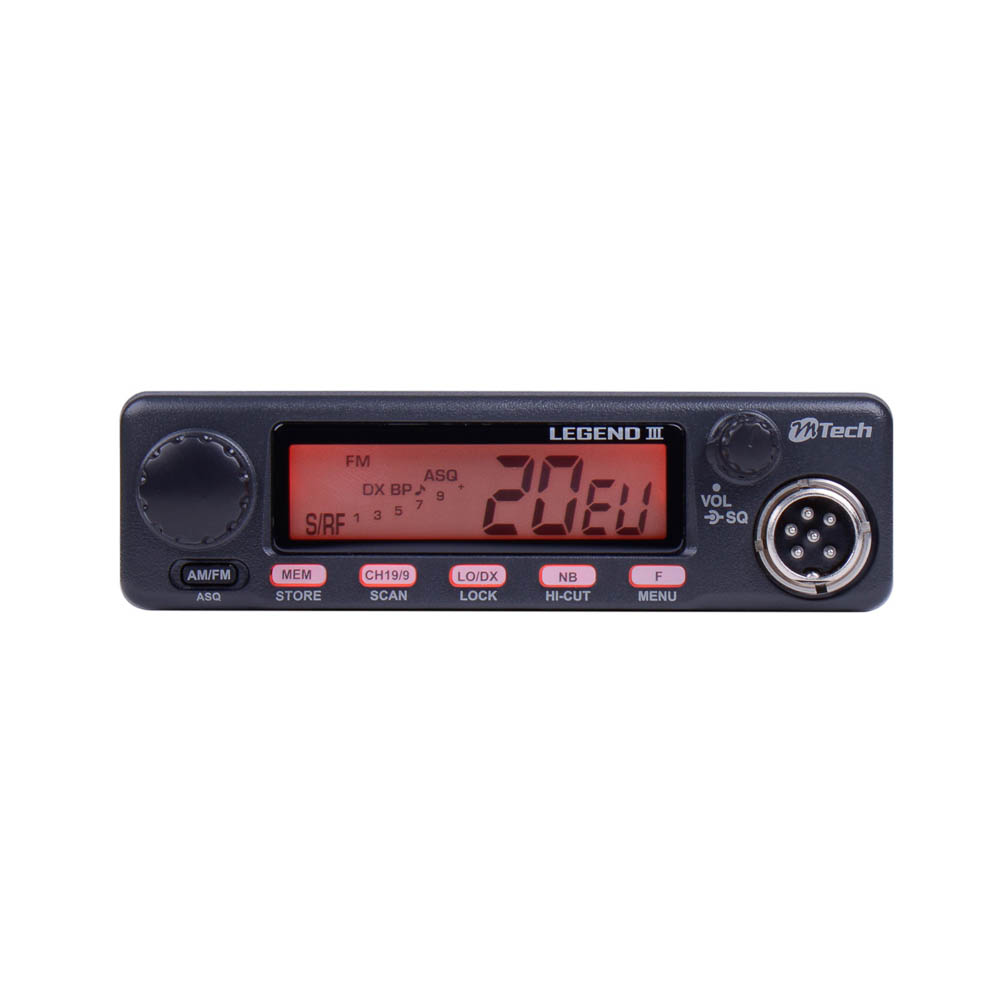

LEGEND III

CB Radio

SKU: LEGEND III Category:

Feature

  • Noise Blanker Circuit
  • I.F. Passband to Eliminate Interference
  • Selectable AM/FM Multi-bands

Specifications

Channels

40 AM/FM (EU)

Frequency Range

26.965-27.405MHz (EU)

Frequency Control

Phase Locked Loop (PLL) Synthesizer

Frequency Tolerance

±600Hz

Input Voltage

13.2V DC

Current Drain

2.0A max. (Tx full mod.)/ 1.5A max. (Rx with max. audio output)

Operating Temperature Range

-10°C to +55°C

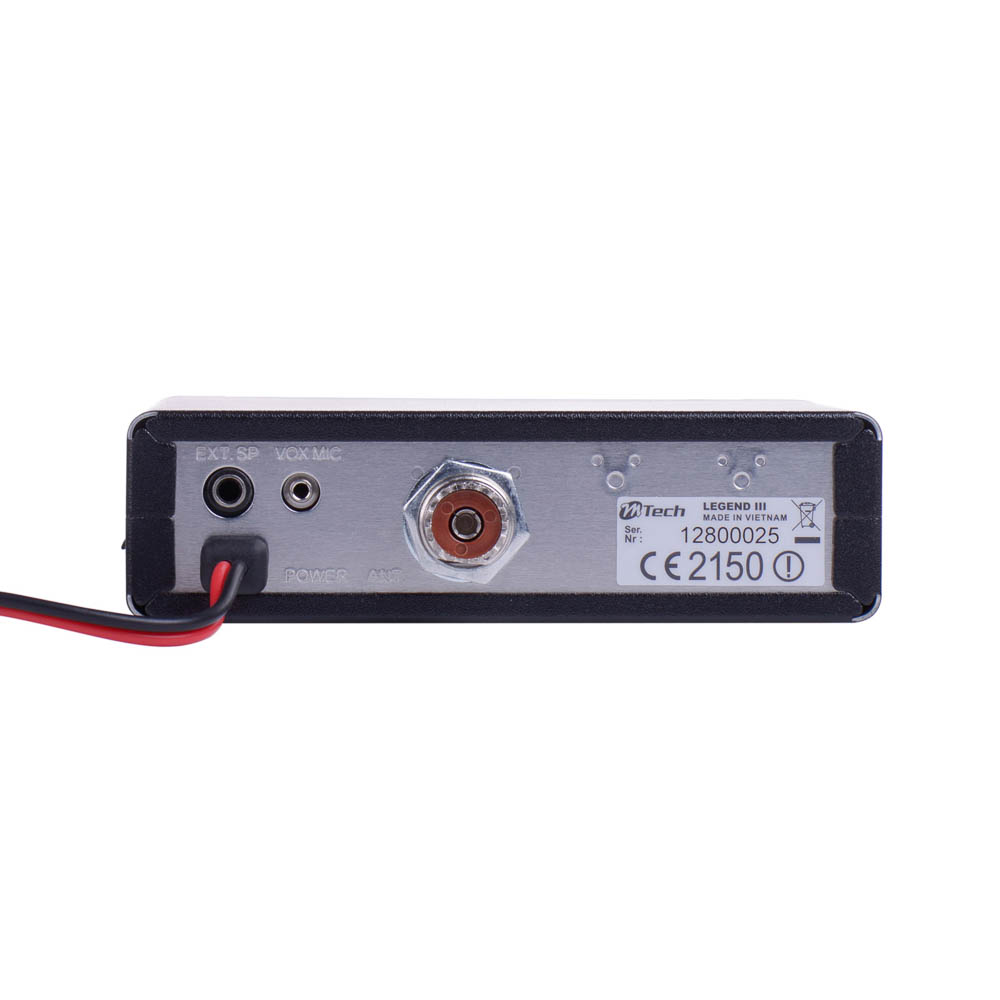

Antenna Connector

SO-239 (UHF)

Meter

LCD back light (ORG)

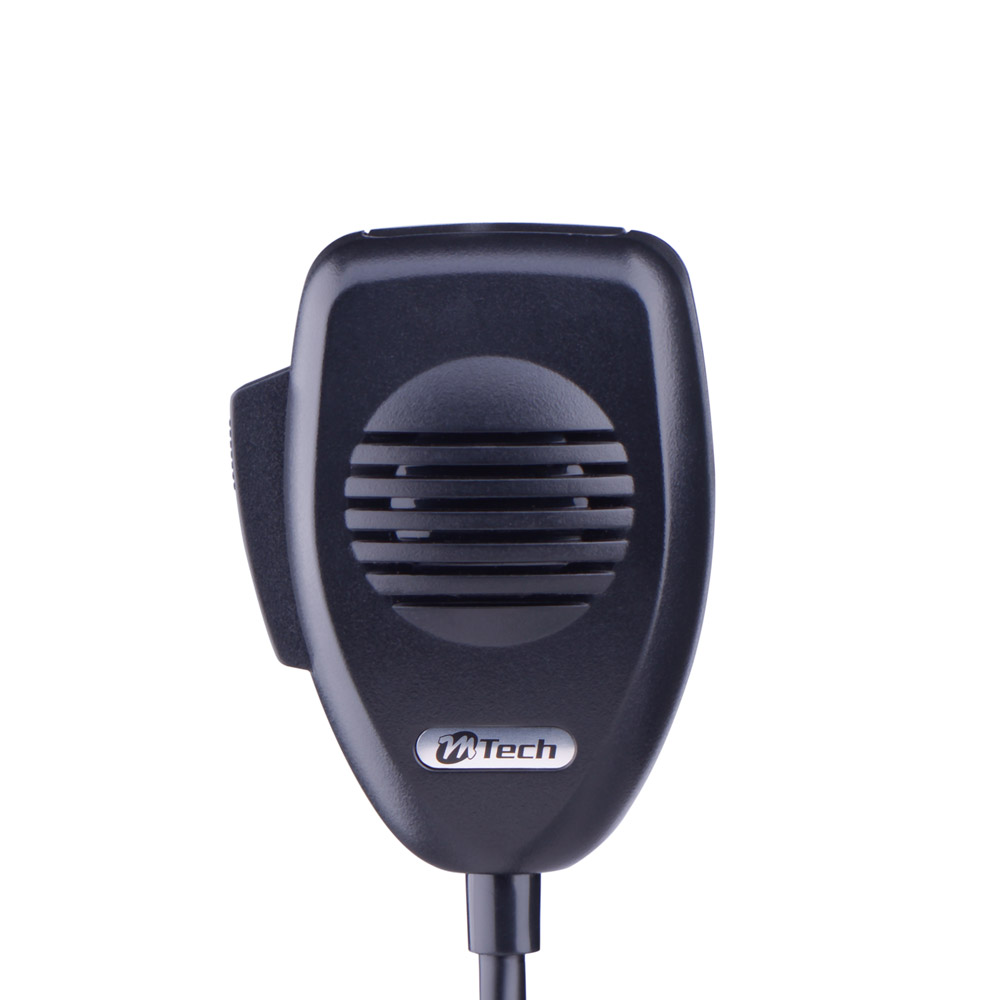

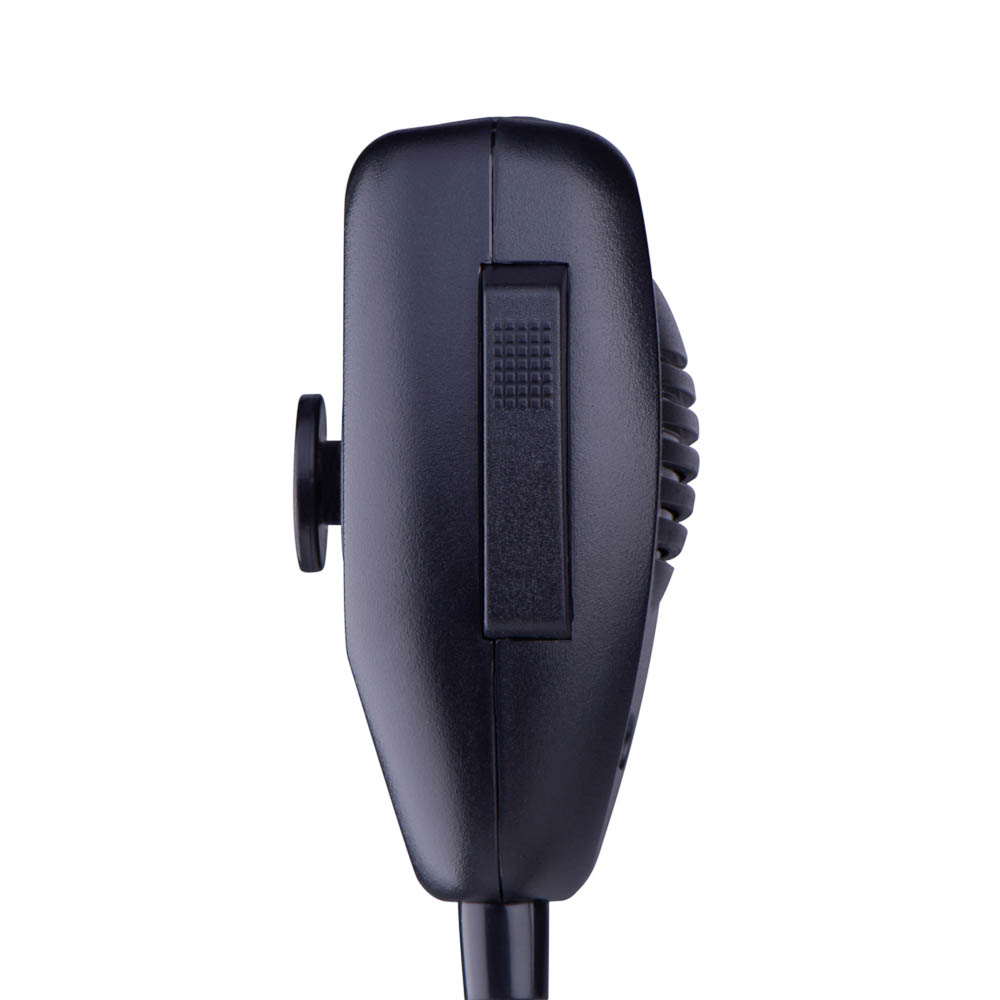

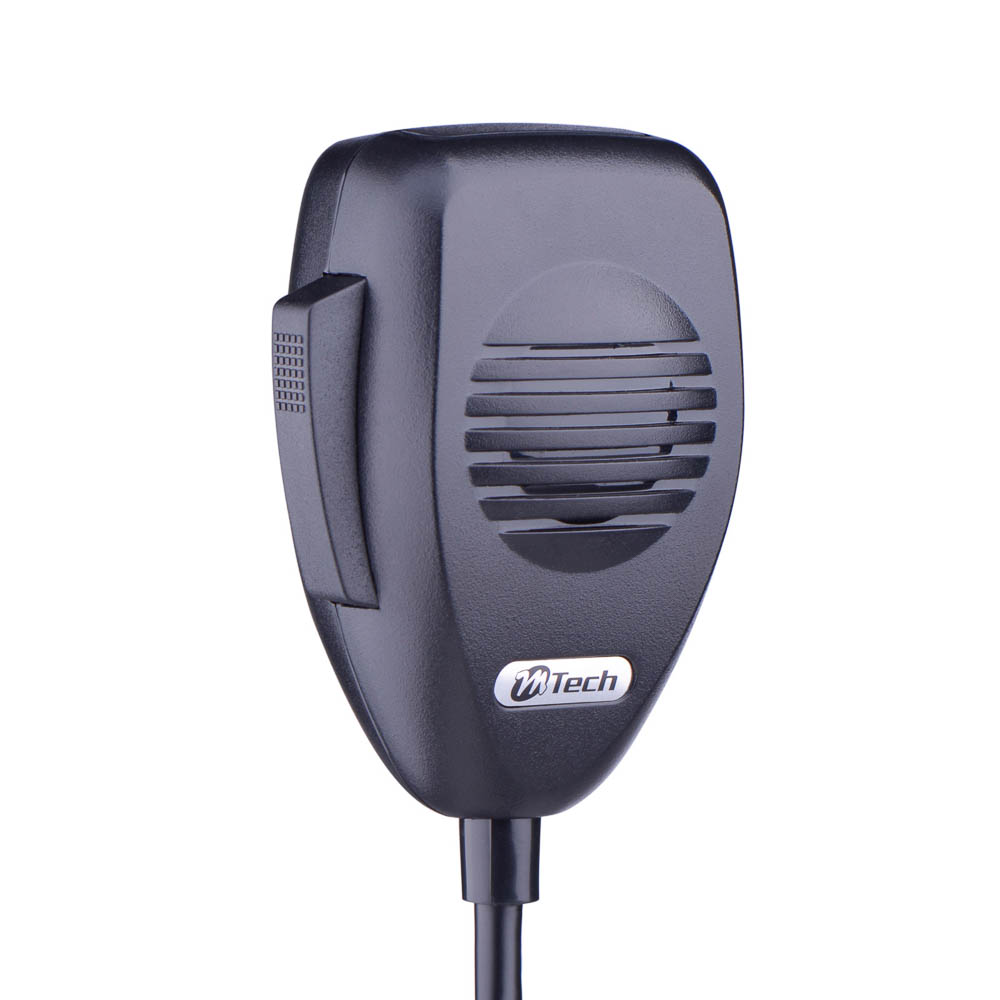

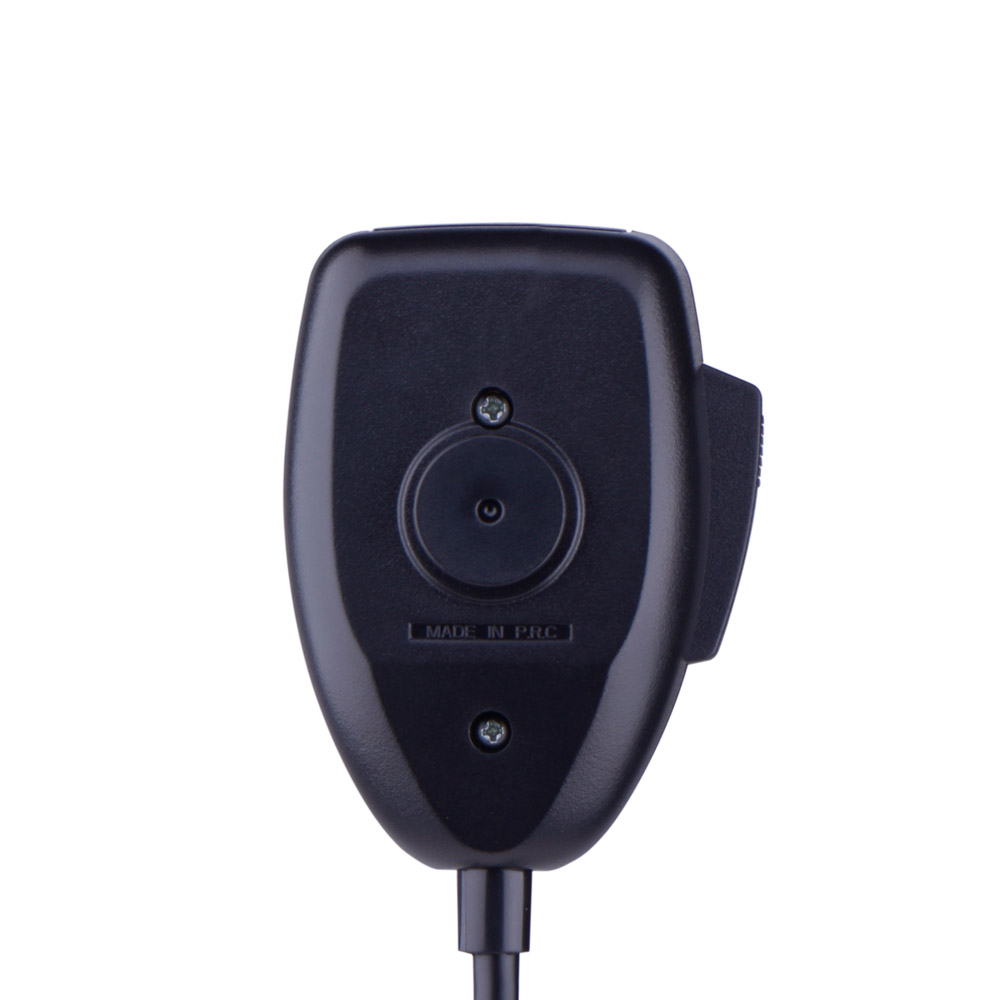

Microphone

Electret condenser type microphone

Filter

ANL (Automatic Nosie Limiter) built-in

Output Power

4W (AM)/ 4W (FM)

Output Impedance

50ohm (Unbalanced)

Sensitivity

0.7uV for 20dB SINAD typical (Limit 1.4uV)

Adjacent Channel Rejection

66dB typical

Image Rejection

75dB typical

I.F. Frequency

Double Conversion Superheterodyne 1st:10.695MHz; 2nd:455MHz

RF Gain Control Range

For optimum reception – LOCAL/DX

Automatic Gain Control (AGC)

<10dB change in audio output for inputs from 10 to 50000uV

Squelch

Adjustable (Threshold less than 1uV)

Audio Output Power

2W rating into 8ohm

Frequency Response

300 to 3000Hz

Distortion

<10%; 0.5W 1KHz

Dimensions

127(L) x 36(H) x 148(D) mm

Weight

Approx. 900g
