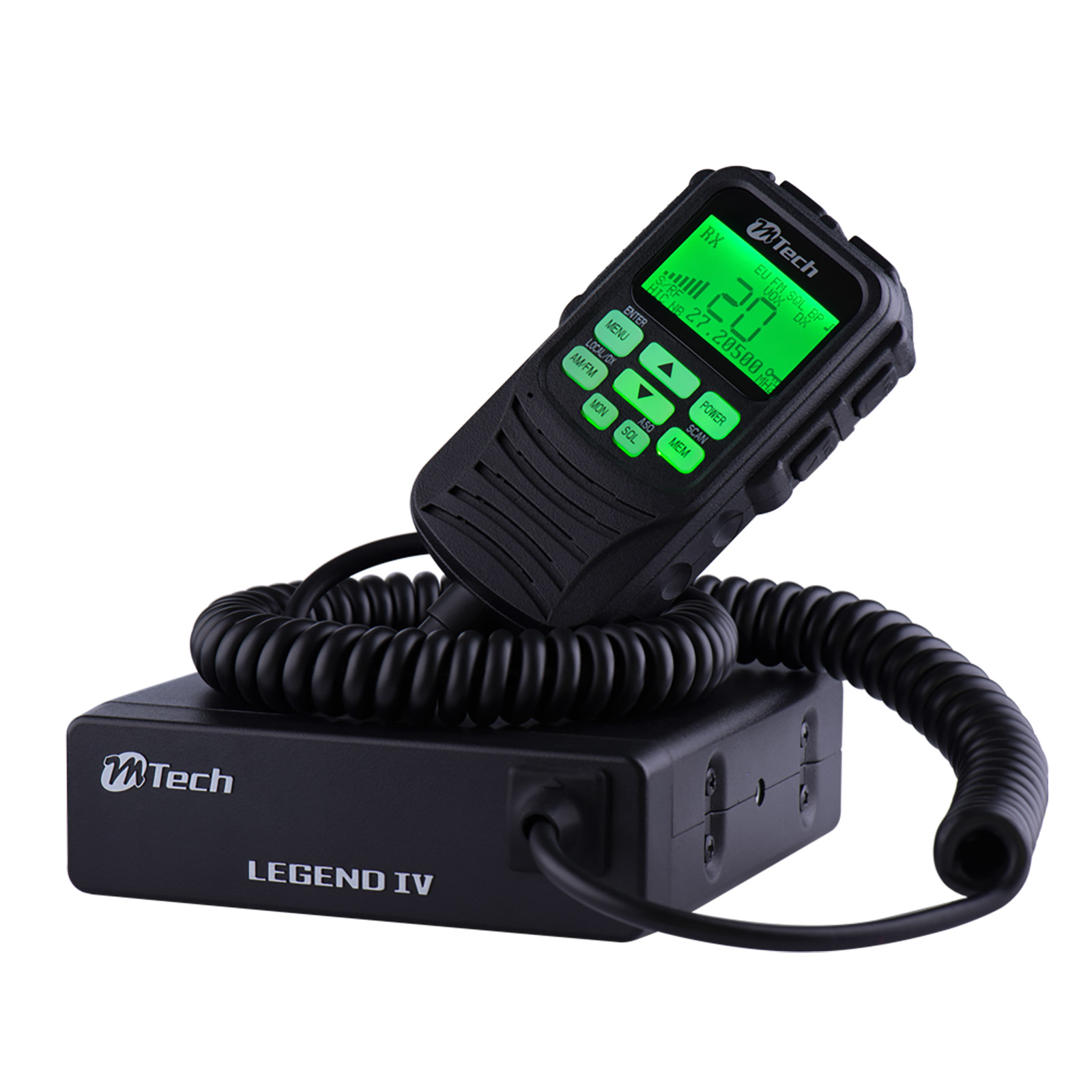

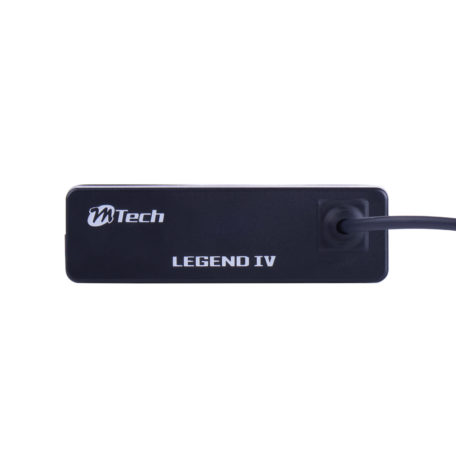

LEGEND IV

CB Radio

SKU: LEGEND IV Category:

Feature

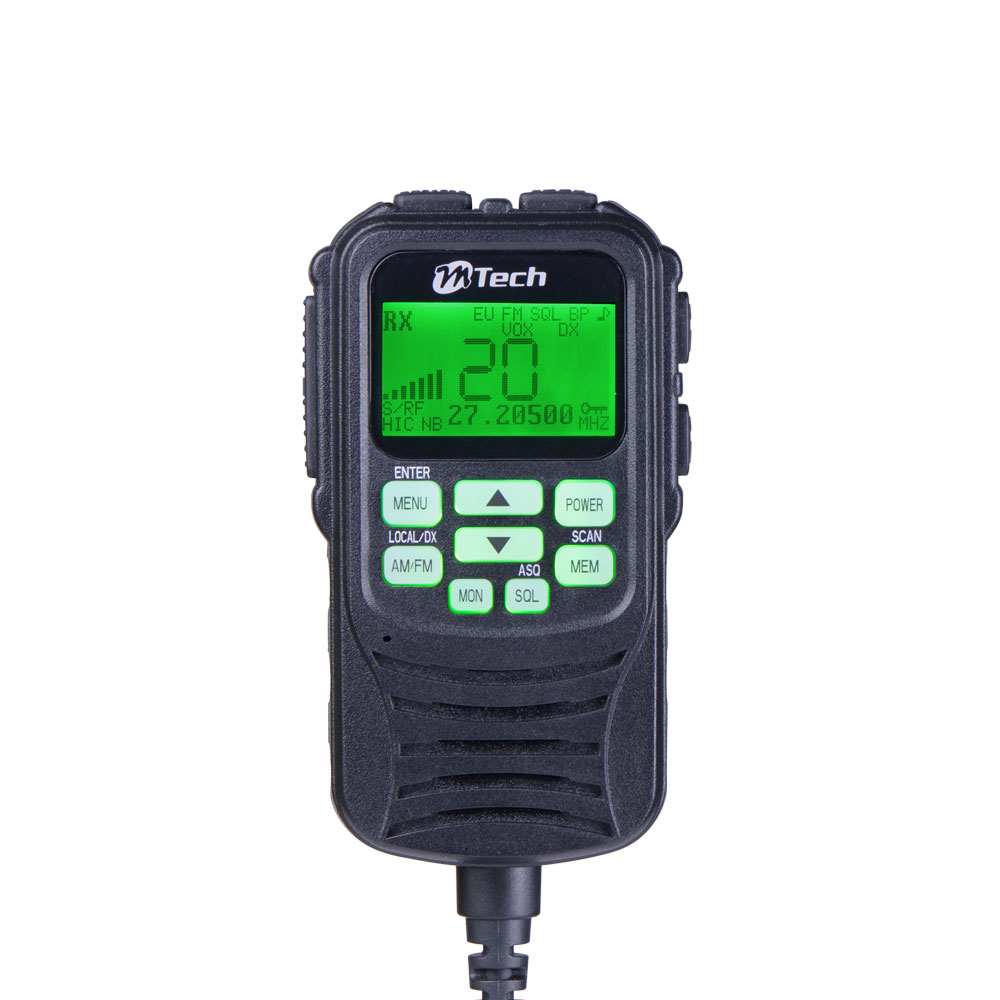

  • Iconic Functions Display Operate Like Smart-phone

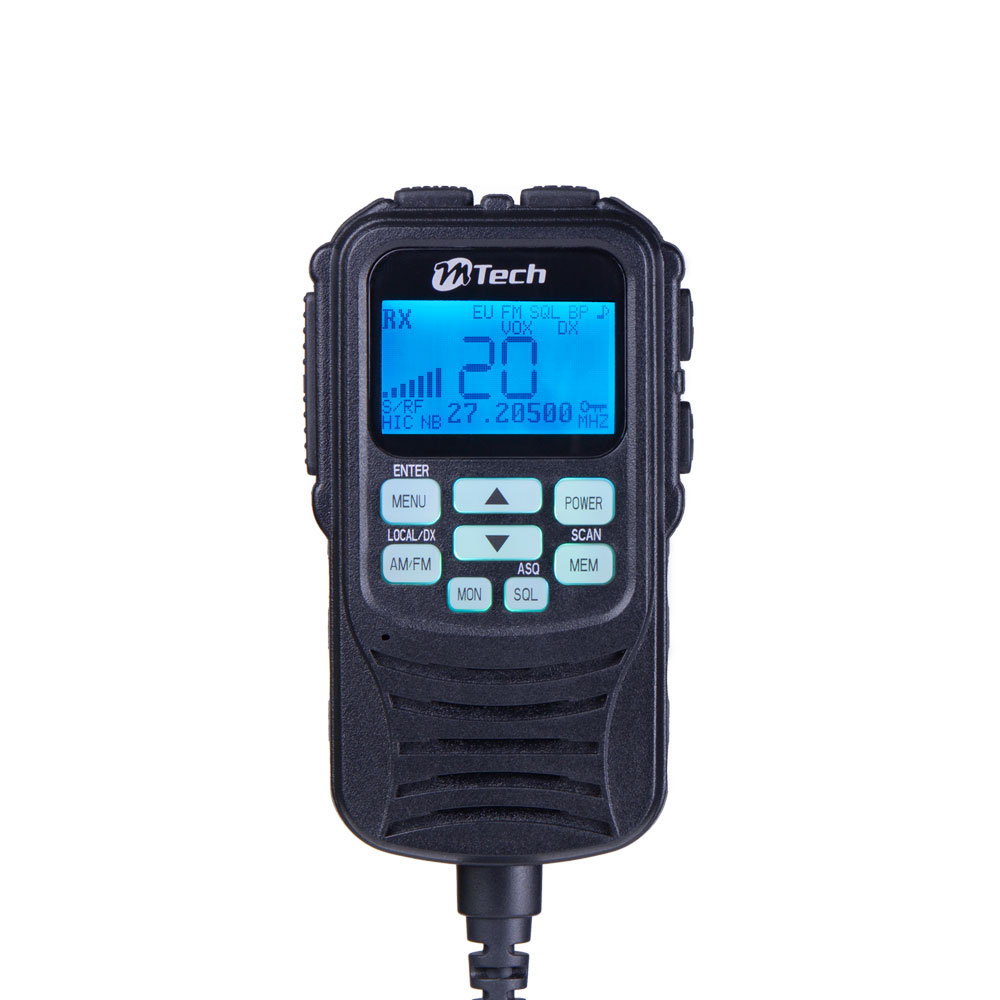

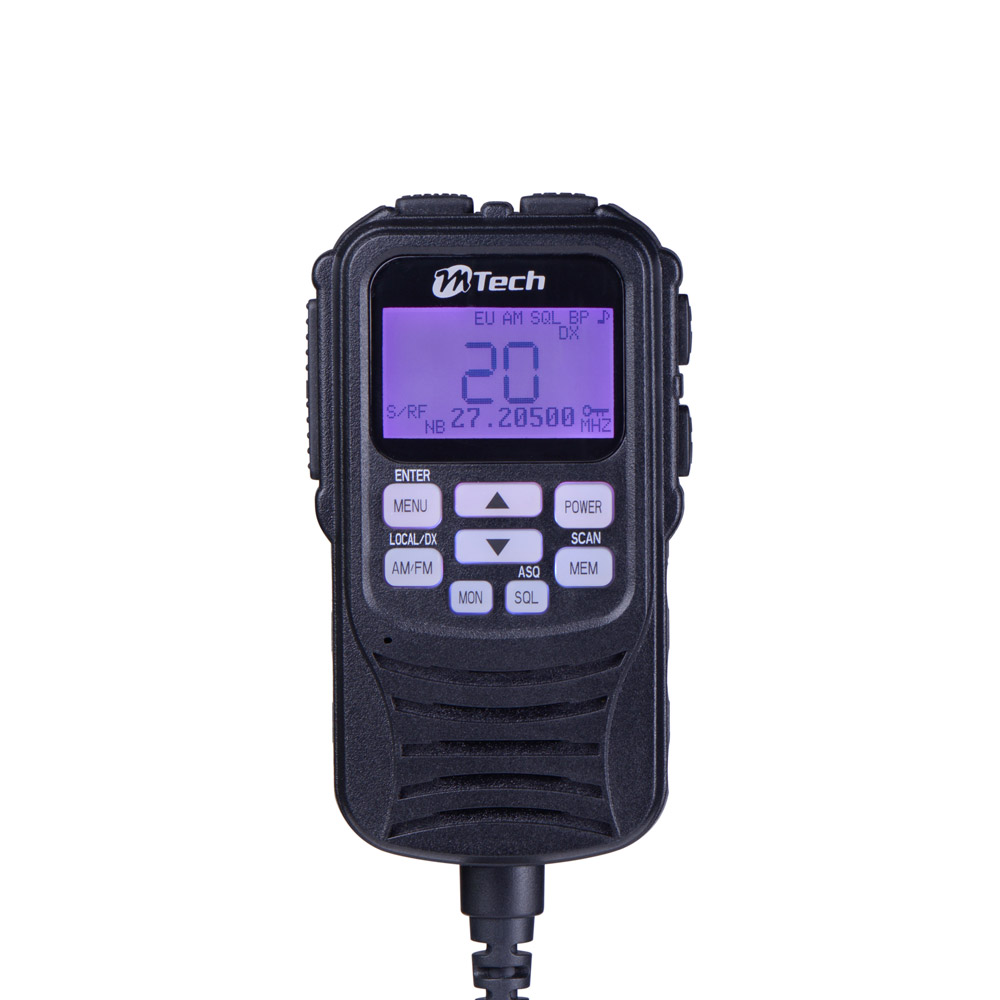

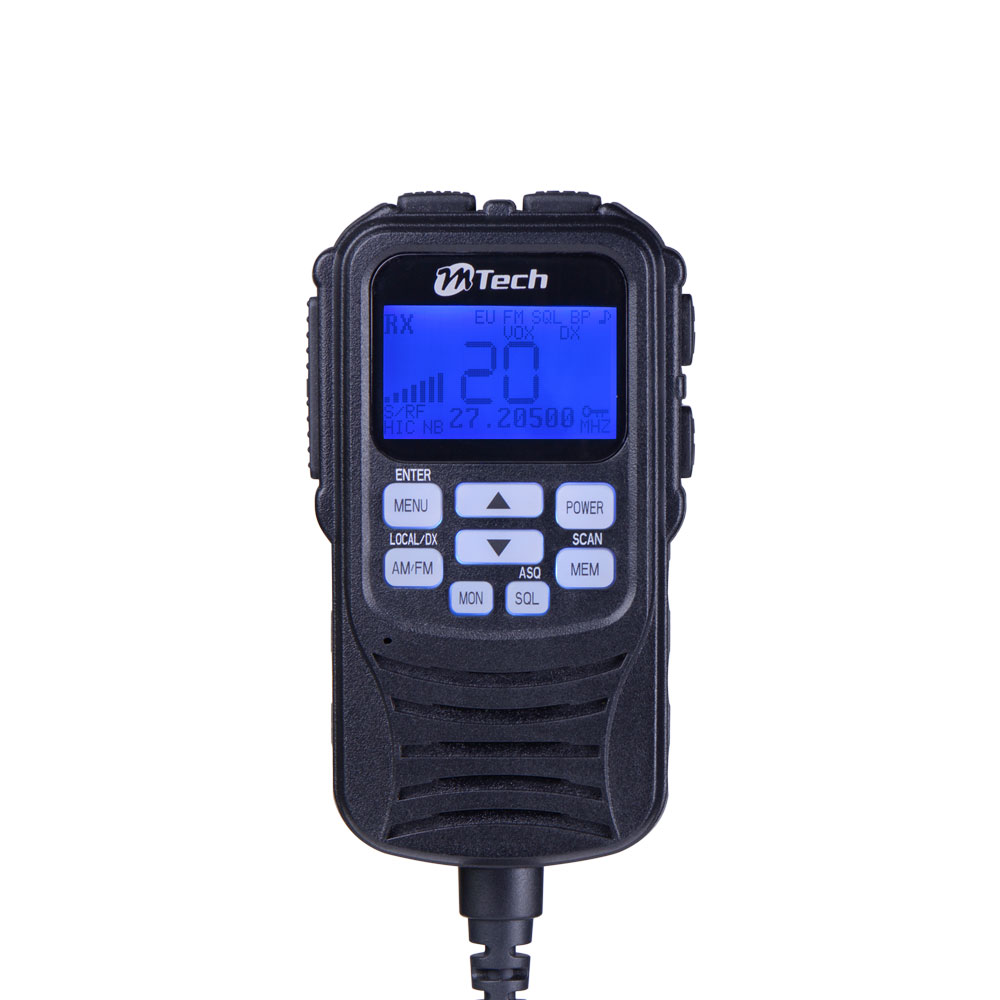

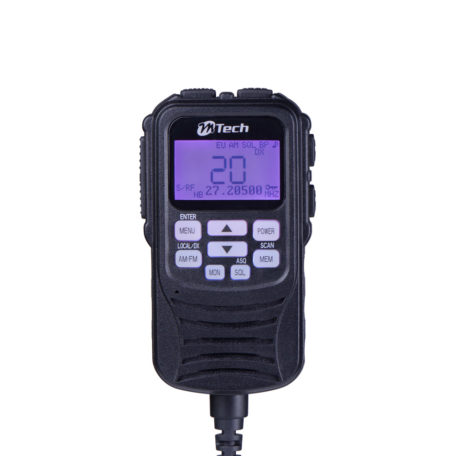

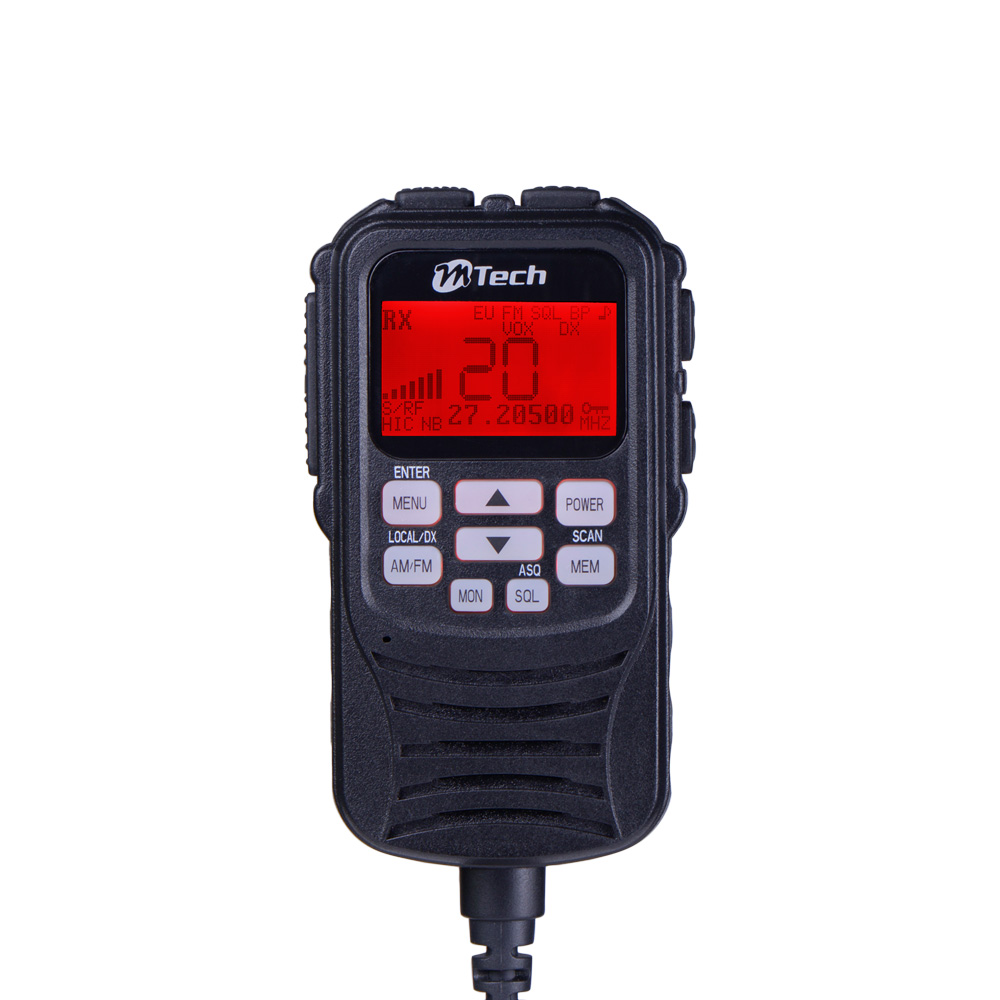

  • Large Display with 5 Color Back Light Control
  • Freedom to Move with Extended Cord
  • Integrating Power Audio

Specifications

Channels

40 AM/FM (EU)

Frequency Range

26.965-27.405MHz (EU)

Frequency Control

Phase Locked Loop (PLL) Synthesizer

Frequency Tolerance

±600Hz

Input Voltage

13.2V DC

Current Drain

2.0A max. (Tx full mod.)/ 1.5A max. (Rx with max. audio output)

Operating Temperature Range

-10°C to +55°C

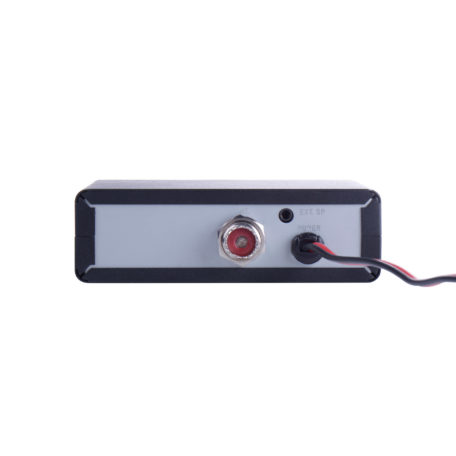

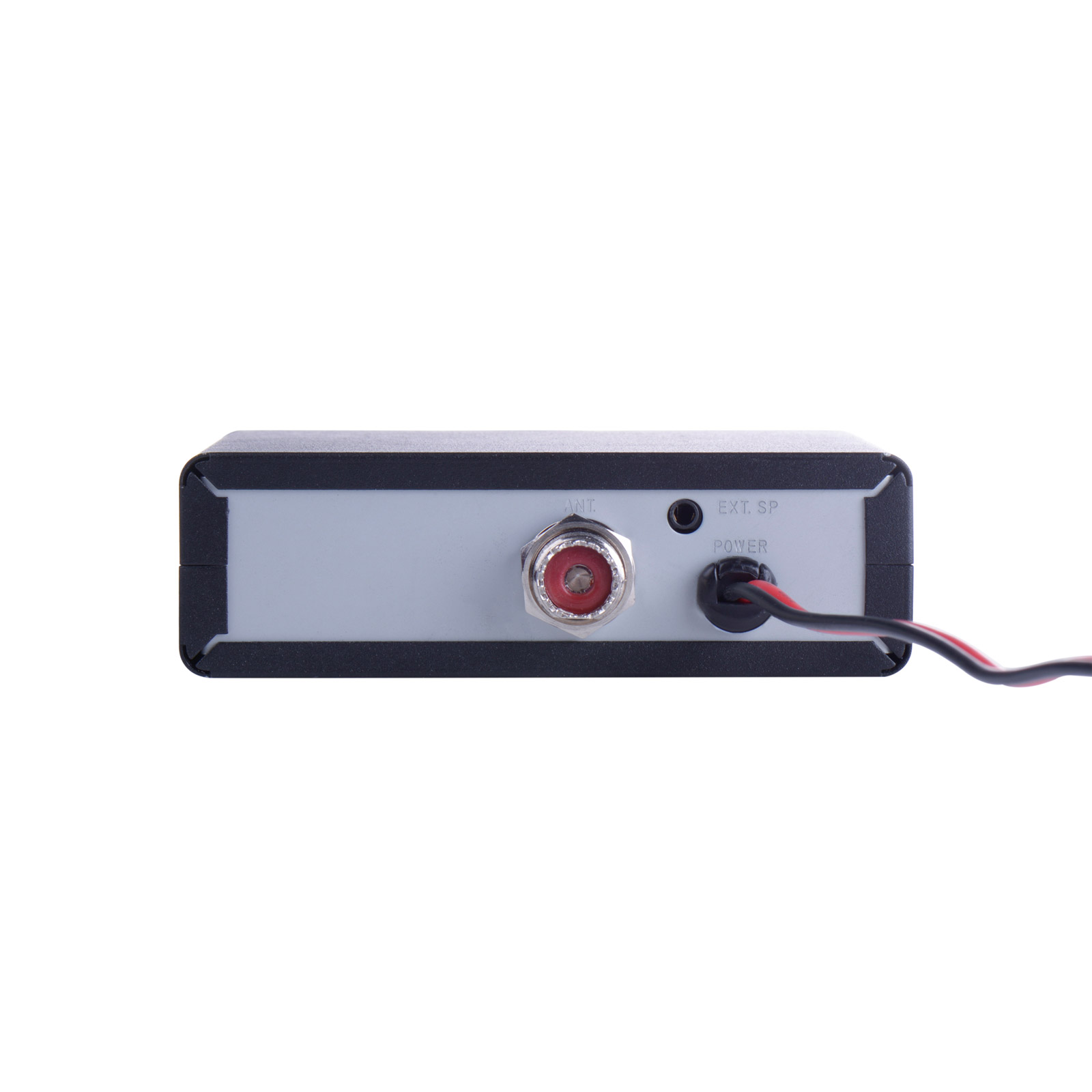

Antenna Connector

SO-239 (UHF)

Meter

Dot Matrix LCD

Microphone

Electret condenser microphone

Filter

Hi-Cut Function (Eliminate High Frequency Interference)/ Noise Blanker

Output Power

4W Max.

Output Impedance

50ohm (Unbalanced)

Sensitivity

0.2uV for 12dB SINAD typical

Image Rejection

75dB typical

I.F. Frequency

Double Conversion Superheterodyne 1st:10.695MHz; 2nd:455MHz

RF Gain Control Range

For optimum reception – LOCAL/DX

Automatic Gain Control (AGC)

<10dB change in audio output for inputs from 10 to 50000uV

Squelch

Adjustable (Threshold less than 1uV)

Audio Output Power

2W rating into 8ohm

Frequency Response

300 to 3000Hz

Distortion

<10%; 0.5W 1KHz

Dimensions

125(L) x 38(H) x 126.5(D) mm

Weight

Approx. 700g
